Linear motors & Torque motors
On the move – linearly and axially
cpc Linear motors; ironless

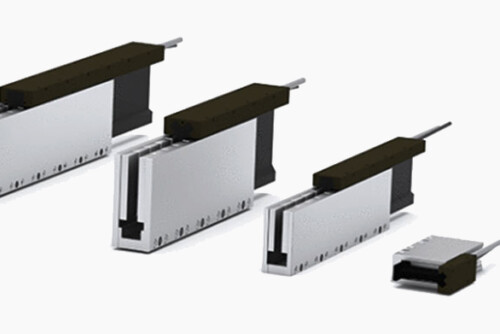

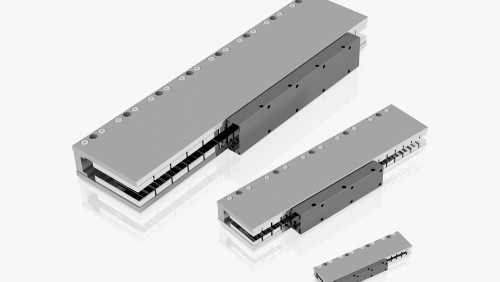

cpc Linear motors Type LM-P; ironless
The ironless cpc linear motors are characterised by their compact design, the strength of the Y-beam and a simple mechanical structure. They are perfect for high-speed operations with high precision and stability, even in dust-free environments.
Documents (PDF)
CAD data
Consulting
cpc Linear motors; iron-core

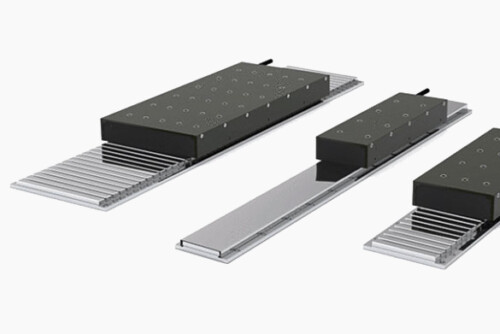

cpc Linear motors Type LM-C; with iron core
cpc linear motors with iron cores are designed for applications requiring high acceleration. They offer high force density, easy heat dissipation, low cogging torque and intelligent features such as a heat dissipation housing and a built-in Hall sensor and overtemperature switch.
Documents (PDF)
CAD data
Consulting

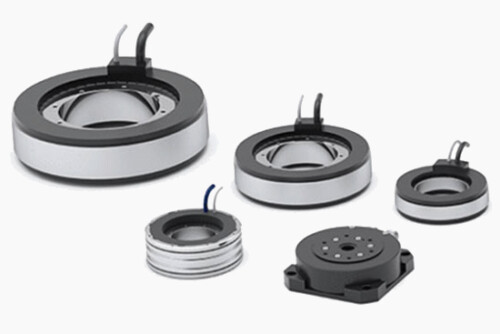

cpc Torque motors
cpc Torque motors type DR
cpc torque motors are characterised by maximum torque density and motor constant, combined with a low profile, direct drive and excellent heat dissipation, ensuring seamless integration and improved efficiency.
Technical data
- Peak torque: 0.17 – 412.3 Nm
- Continuous torque: 0.07 – 165.8 Nm
- Height: 8 – 100 mm
- Diameter: 30 – 210 mm
- Winding: standard, low current, low voltage
- Sensors: Hall sensor, PTC-90 °C, KTY84-130
- Cooling: air, water
- Cable outlet: radial, axial
Documents (PDF)
CAD data
Consulting

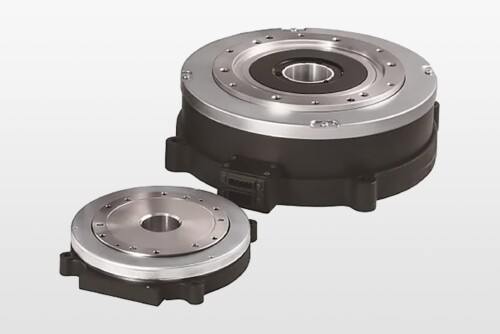

NSK Megatorque™ motors
NSK Megatorque™ – Direct drives for high-speed handling
Rotary unit and motor in one – maximum resolution and dynamics with compact dimensions.
General characteristics:
- Shortest positioning times thanks to high rotational speeds
High-quality bearings for high rotational speeds up to 10 s-1 and high rigidity - Compact: Ø 100 to 286 mm, heights from 35 mm
- High torques: 5 to 180 Nm
- High resolution: 2,621,440 pulses/revolution
- Accuracy: Repeatability ±2 arc seconds
- EDD driver unit/positioning control
EDD Megaterm software for easy parameter setting and motor operation control.
Extensive product range
- Type PN with brake; environmentally resistant model Z (dustproof/waterproof); type PX with high acceleration/deceleration
– High-speed positioning
– Thin profile
– High-precision position sensor
– Internal rotor - PB Series – User-friendly and excellent price/performance ratio
– Compact with large through-hole for wiring/piping
– Standard pulse train positioning command
– Real-time autotuning for easy commissioning - PS series with external rotor for high speeds
– High-speed rotation
– High-speed positioning
– Compact size
– High-precision position sensor
– External rotor
Documents (PDF)
