Bridge Modules for self-supporting long-stroke portal axes

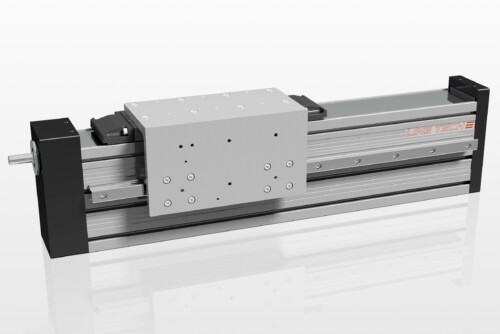

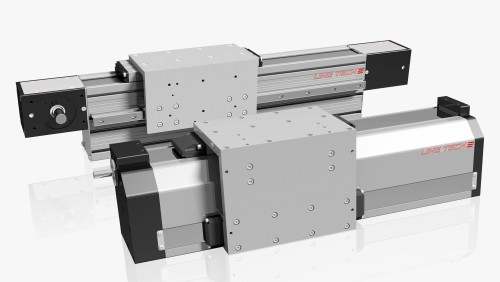

LINE TECH Bridge modules BM…Z… / BM…R…

Bridge modules with toothed belt drive or ball screw drive for self-supporting, long-stroke portal axes

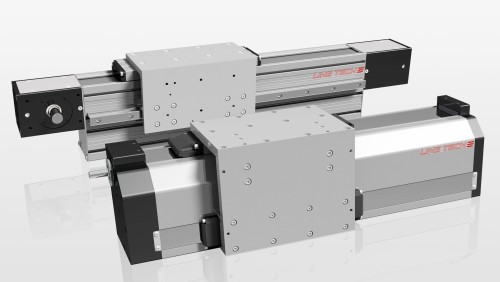

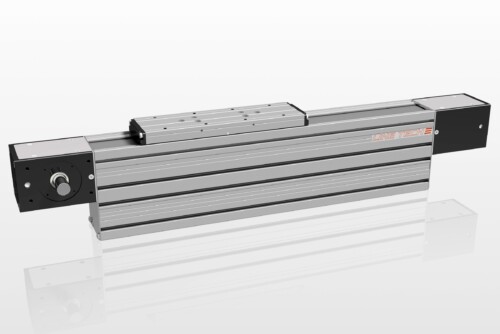

Line Tech Brückenmodul / Bridge module BM R Z

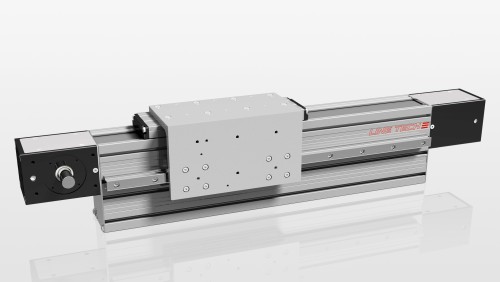

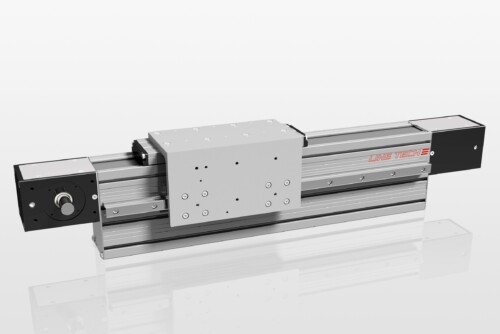

Line Tech BM Z

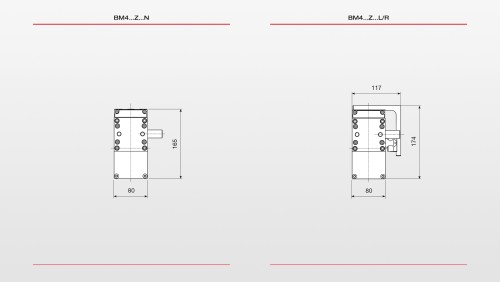

Line Tech BM Z Profile

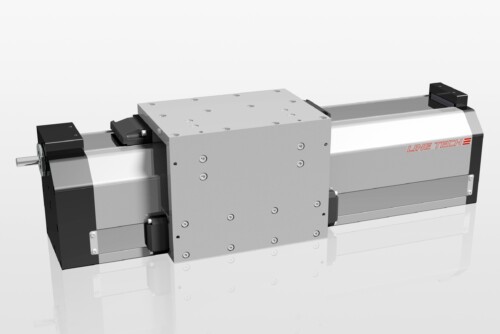

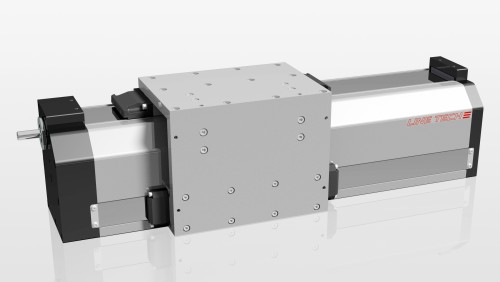

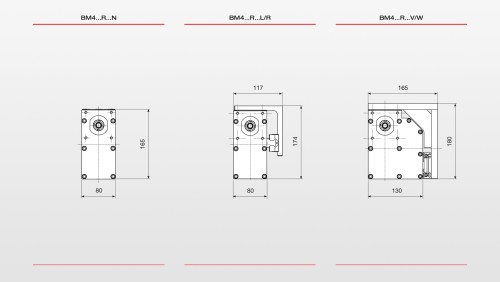

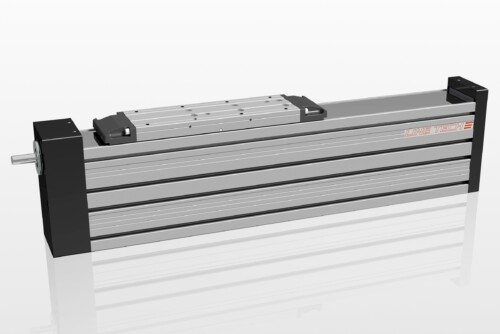

Line Tech BM R
Line Tech BM R Profile

Bridge modules BM

are especially suitable as self-supporting long-stroke portal axes or axes with higher intrinsic inertia.


With toothed belt drive (Type BM…Z…):

  • 1 size in 2 versions
  • Stroke up to 6,180 mm
  • XL version: Stroke up to 12,480 mm
  • C0: 2200 N
  • vmax = 5 m/s | amax = 50 m/s2
  • Repeatability <0.2 mm/1000 mm
  • Positioning accuracy 200 µm/1000 mm


With ball screw drive (Type BM…R…):

  • 1 size in 3 versions
  • Stroke up to 3,000 mm
  • C0: 5705 N | C: 4912 N
  • vmax = 1.6 m/s | amax = 10 m/s2
  • Repeatability <0.03 mm/1000 mm
  • Positioning accuracy 52 µm/300 mm

LINE TECH Bridge modules BM

are especially suitable as self-supporting long-stroke portal axes or axes with higher intrinsic inertia. These ready-to-install, modular linear axes are available in one size (BM4) and provided with an integrated linear rail guide and type-specifically with a second lateral linear rail guide. High-performance toothed belts or ball screws are available as drives.

Design and advantages

  • Ready-to-install bridge modules
  • Ultra-strong aluminium profile as base carrier
  • Aluminium carriage
  • Optimal movement characteristics combined with high load ratings and high rigidity due to either one or two linear rail guides
  • Drive via either
    – Toothed belt (BM…Z…)
    – Ball screw (BM…R…)
  • Simple gearbox and motor mounting
  • Suitable for multi-axis systems
  • Design can be adapted to the application*

Documents

Links



*Adaptations to meet specific customer needs can be realized flexibly and at short notice thanks to our JIT production facility – from minor additional processing to complete application-specific solutions.
Our customers always benefit from short delivery times thanks to our large warehouse with correspondingly high availability.

Passende Lineareinheit finden

Baureihe
Antrieb

Technische Anforderungen

Axiale Kraft FX dyn
Abhängig von Antrieb und Fahrprofil

Contact

  • Contact your LINE TECH sales consultant » Contact

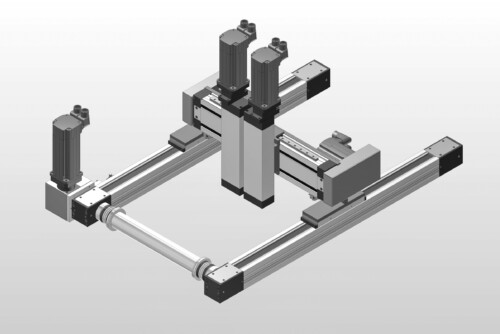

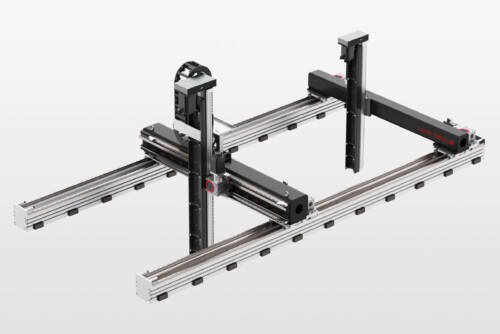

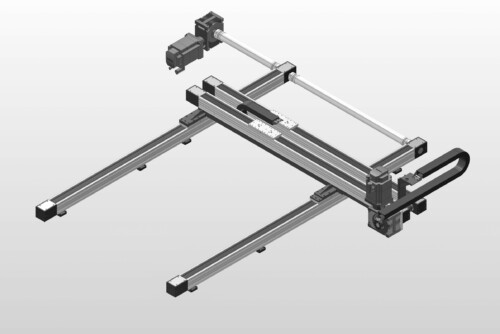

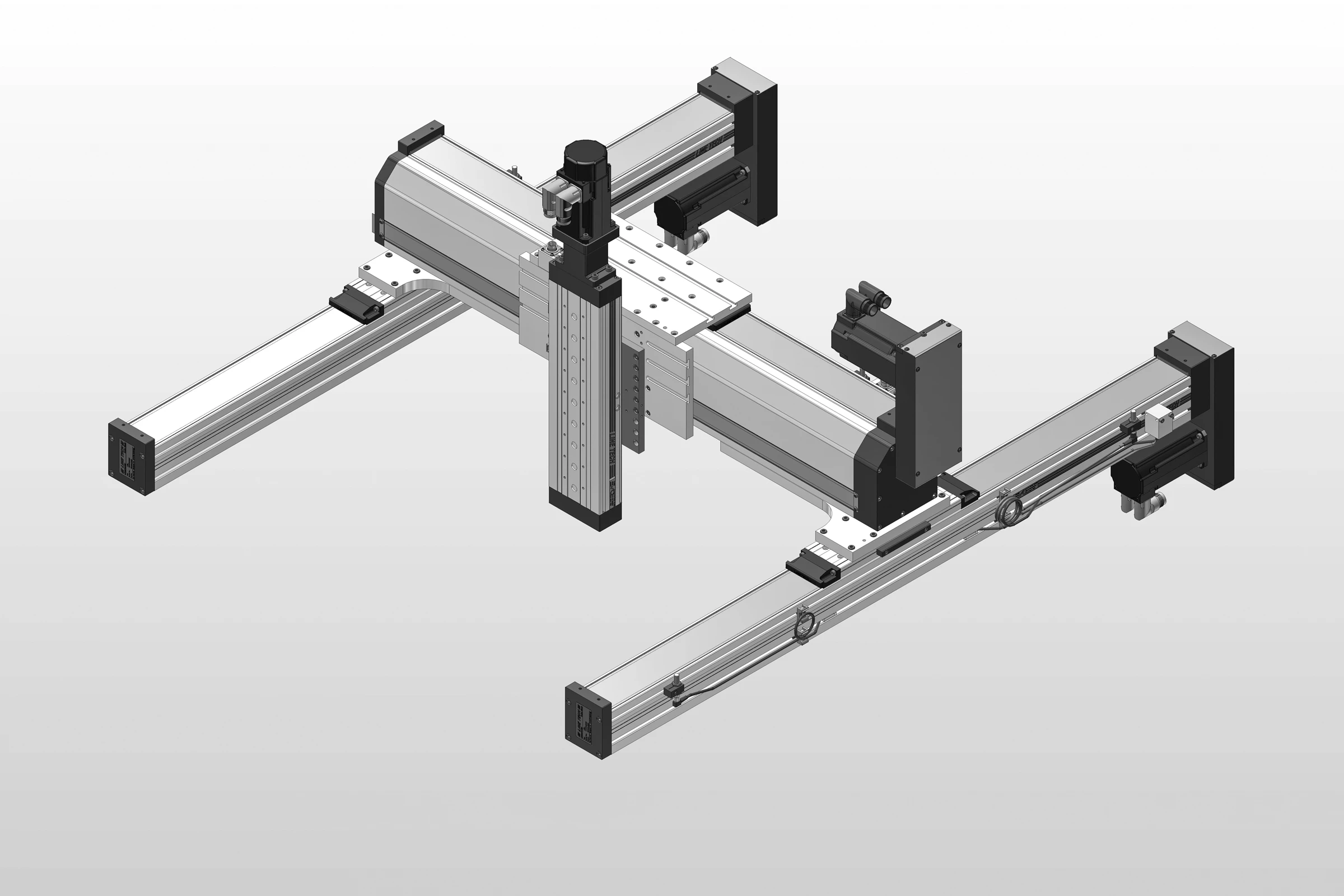

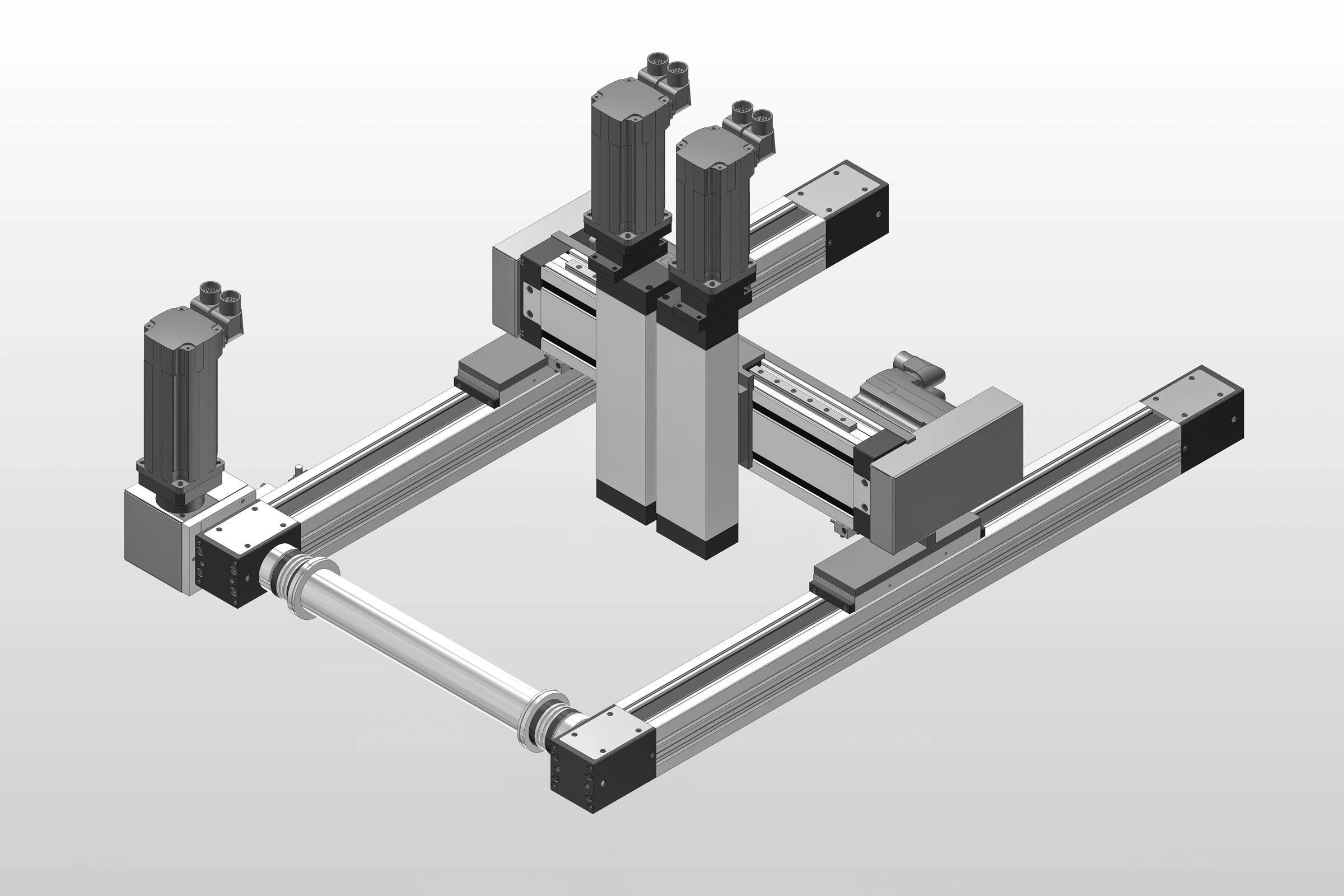

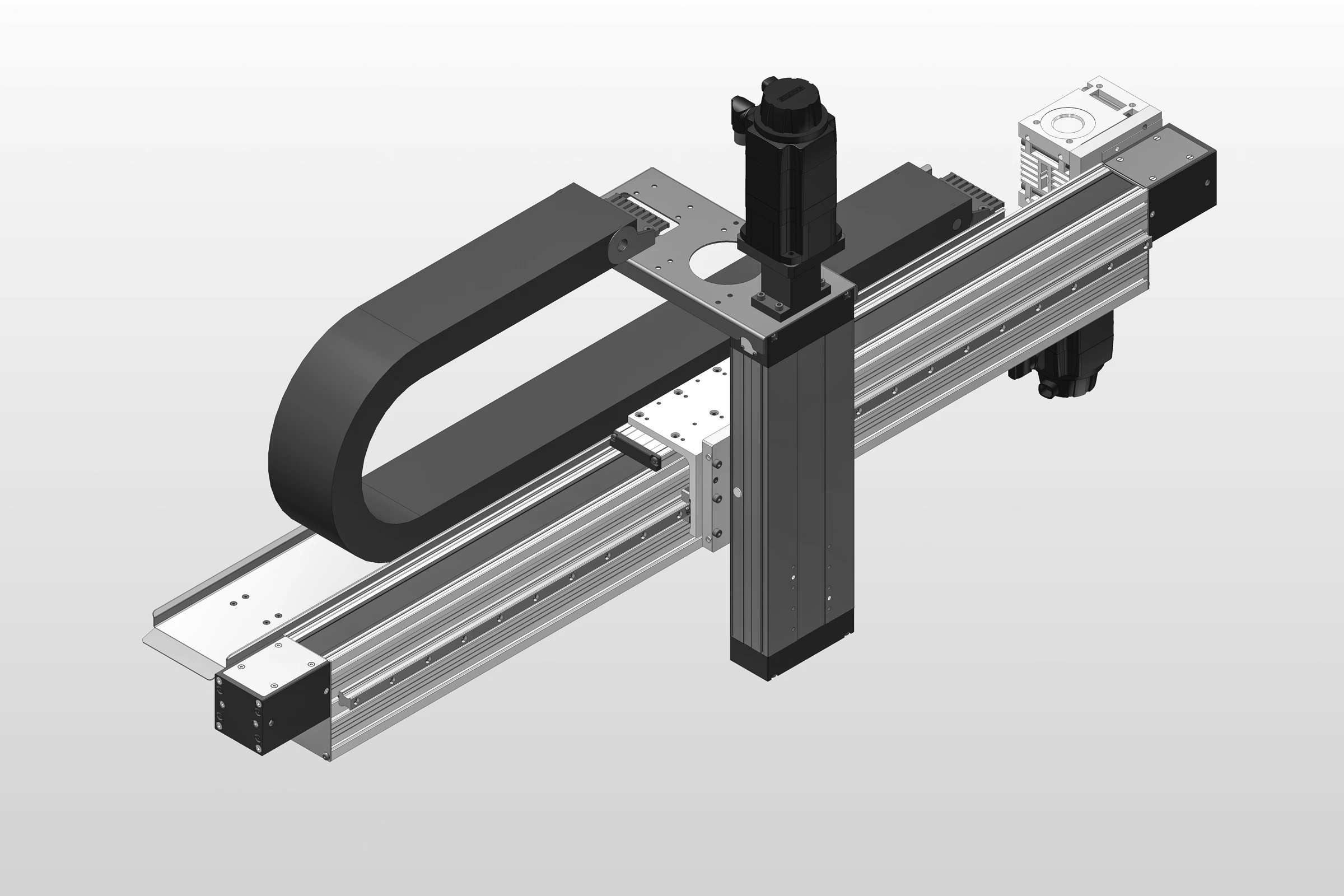

Application examples
