Linear modules LM
for applications with longer strokes and high travel speeds under medium loads

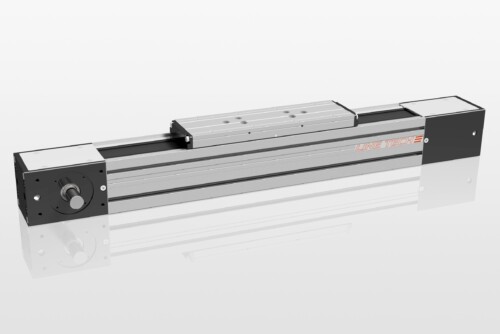

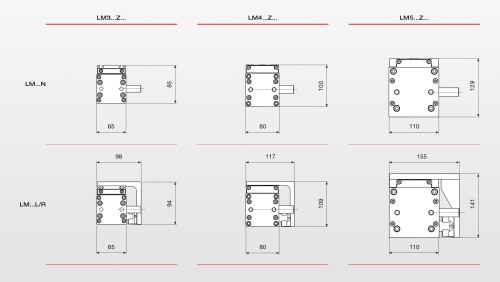

With toothed belt drive (Type LM…Z…):
- 3 sizes, each in 2 versions
- Stroke up to 7650 mm
- XL version : Stroke up to 15'350 mm
- C0: 1560…5280 N
- vmax = 5 m/s | amax = 50 m/s2
- Repeatability <0.2 mm/1000 mm
- Positioning accuracy 200 µm/1000 mm

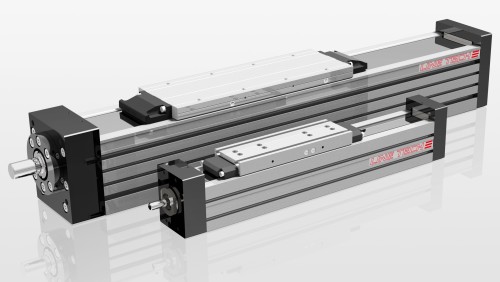

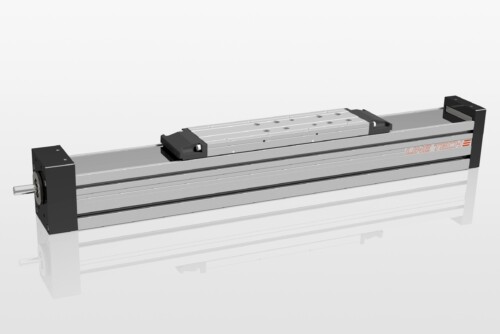

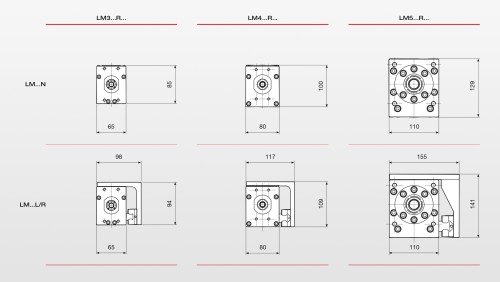

With ball screw drive (Type LM…R…):
- 3 sizes, each in 2 versions
- Stroke up to 3000 mm
- C0: 4551…11538 N | C: 4327…8947 N
- vmax = 1.6 m/s | amax = 10 m/s2
- Repeatability <0.03 mm/1000 mm
- Positioning accuracy 53 µm/300 mm
LINE TECH Linear modules LM

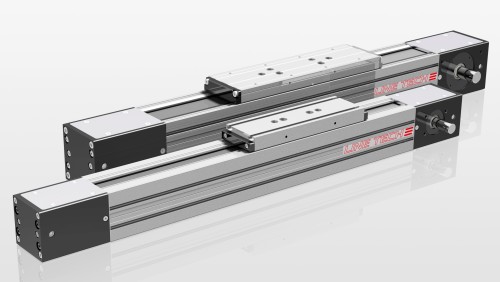

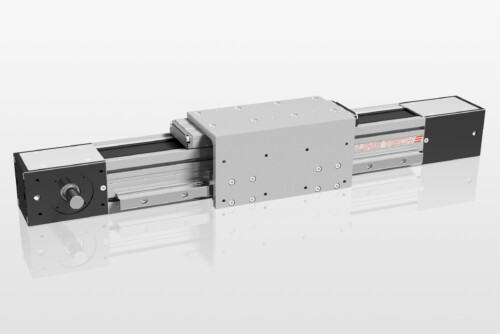

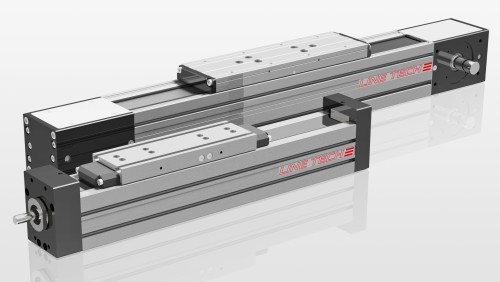

are ideal for applications with greater travel distances, high speeds and medium loads. These ready-to-install, modular linear axes are available with either an integrated (LM...N...) or a second outlying linear rail guide (LM...L/R...), both fitted with 2 runner blocks each. High-performance toothed belts (LM...Z...) or ball screws (LM...R...) are available as drives. Three sizes (LM3, LM4, and LM5) are currently available.
Design and advantages
- Ready-to-install linear modules
- Compact aluminium profile as base carrier
- Aluminium carriage
- Optimal movement characteristics, high load ratings and high rigidity due to one or optionally two zero-play linear rail guides
- Drive via either
– Toothed belt (LM…Z…)
– Ball screw (LM…R…) - Simple gearbox and motor mounting
- Design can be adapted to the application*
Documents
- LM Catalogue (PDF)
- Assembly/maintenance instructions LM…Z… (PDF)
- Assembly/maintenance instructions LM…R… (PDF)
- Accessories (PDF)
- Calculation bases (PDF)
Links
*Adaptations to meet specific customer needs can be realized flexibly and at short notice thanks to our JIT production facility – from minor additional processing to complete application-specific solutions.
Our customers always benefit from short delivery times thanks to our large warehouse with correspondingly high availability.
LINE TECH Linear module range
Linear modules with toothed belt drive
XL version for application-specific extra-long strokes of up to 15 metres. Even longer strokes available on request.

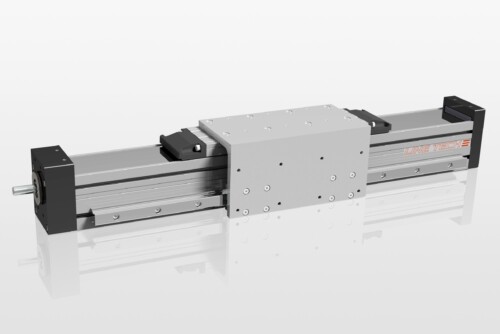

Linear modules with ball screw drive
Contact
- Contact your LINE TECH sales consultant » Contact
Application examples

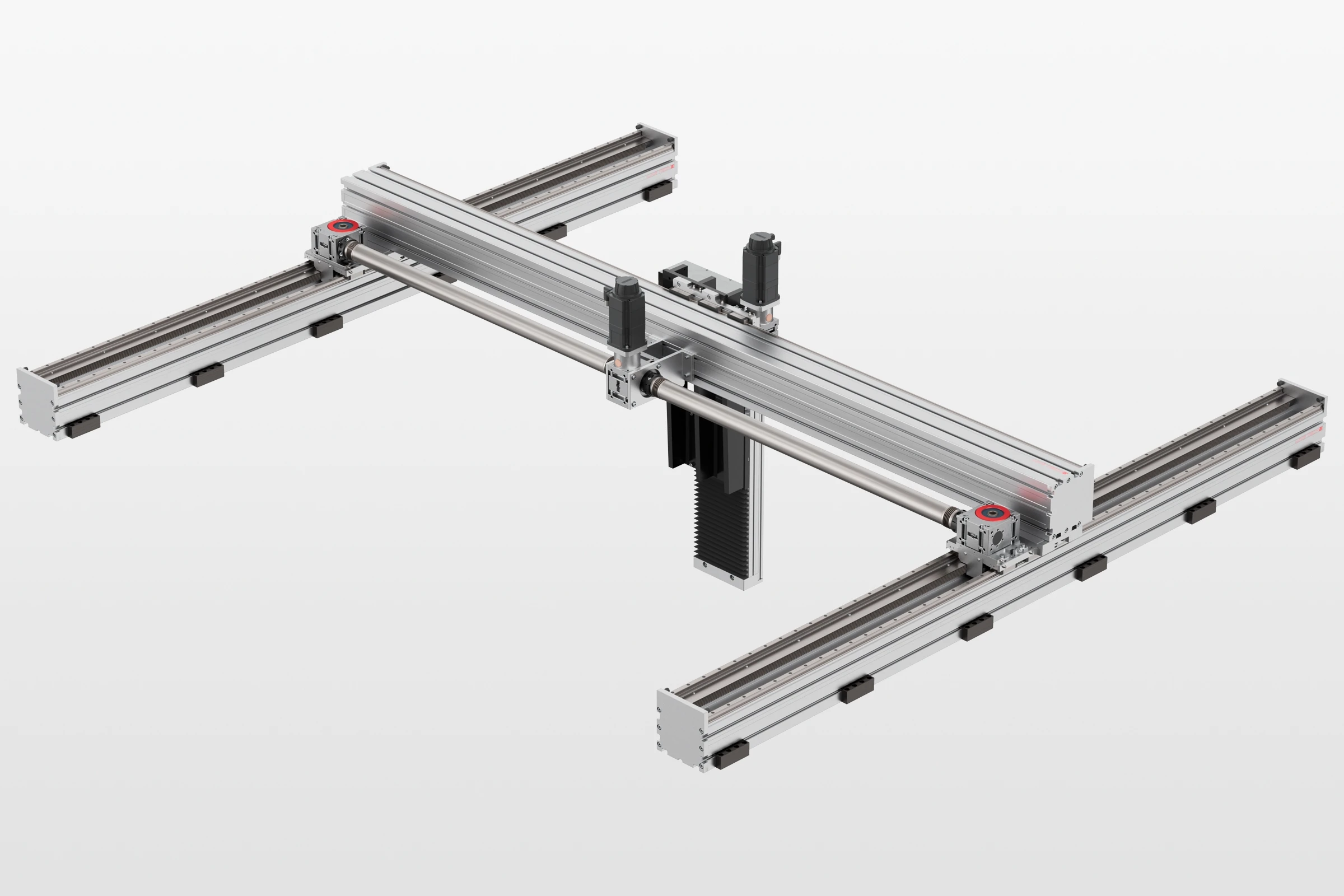

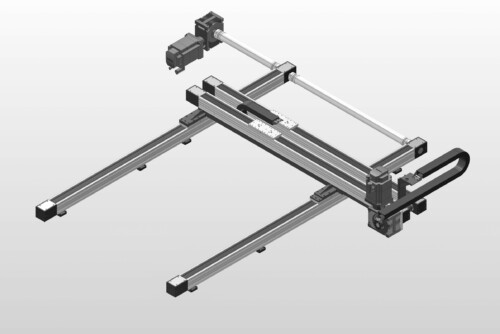

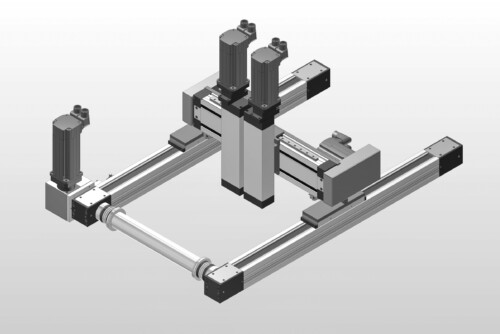

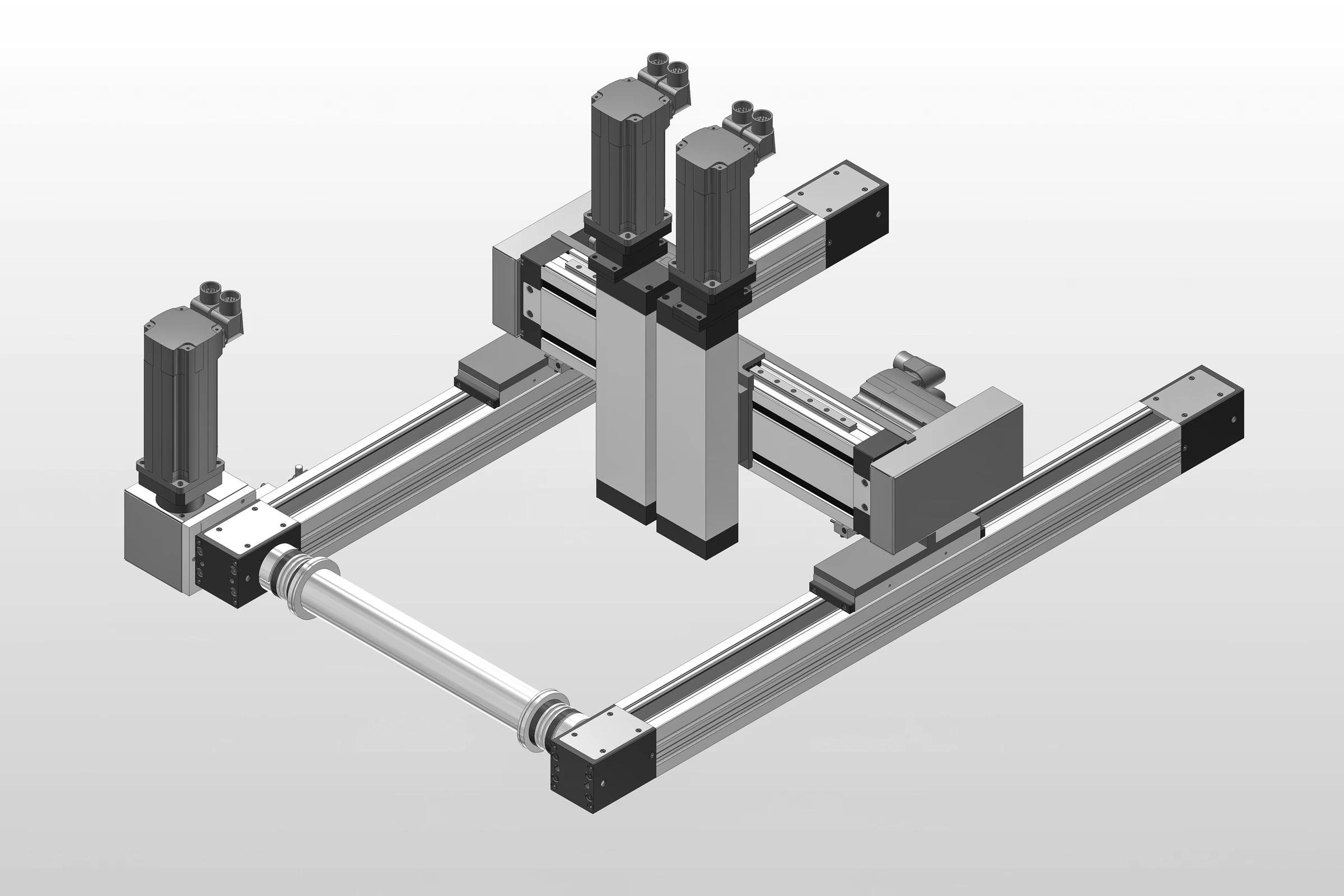

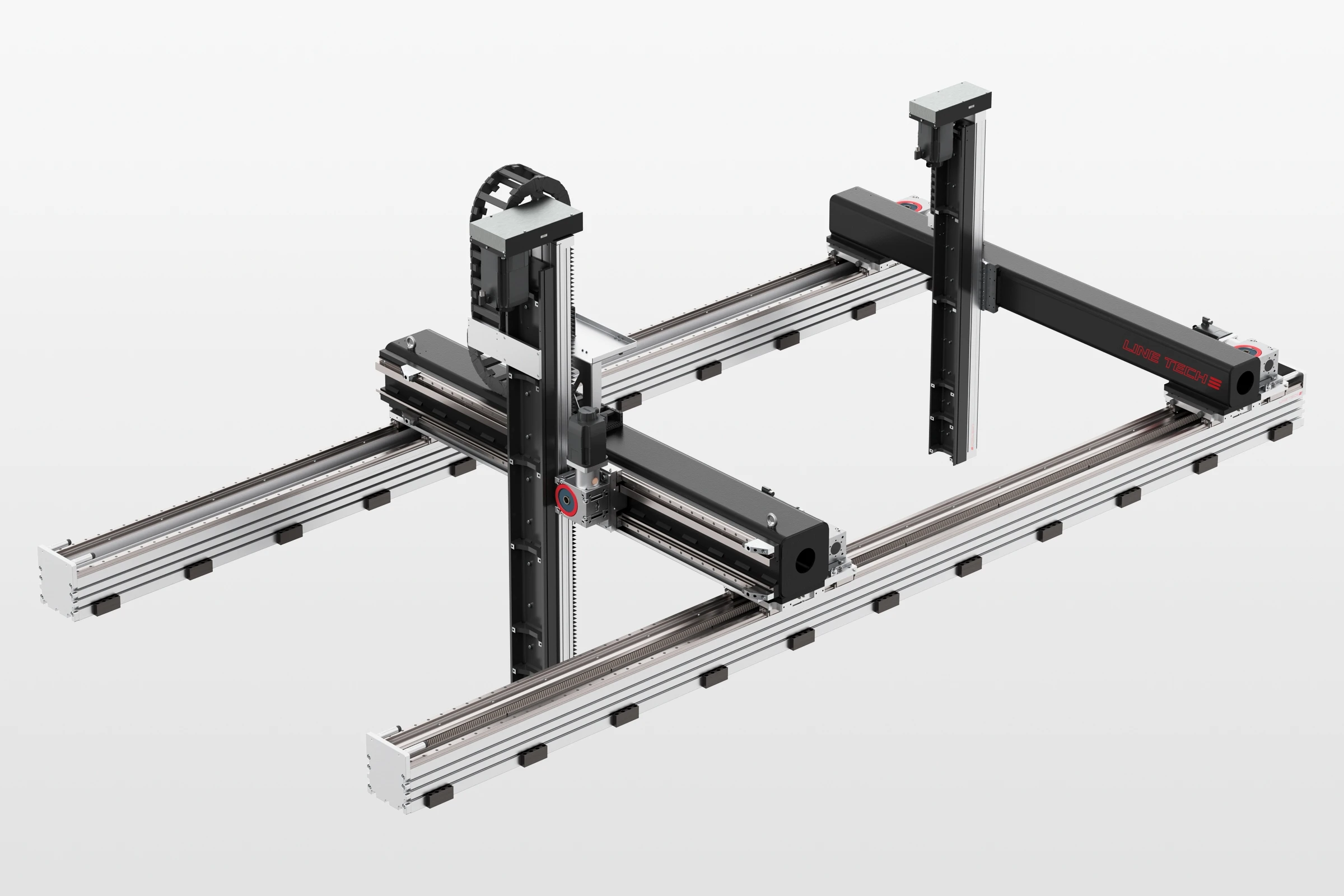

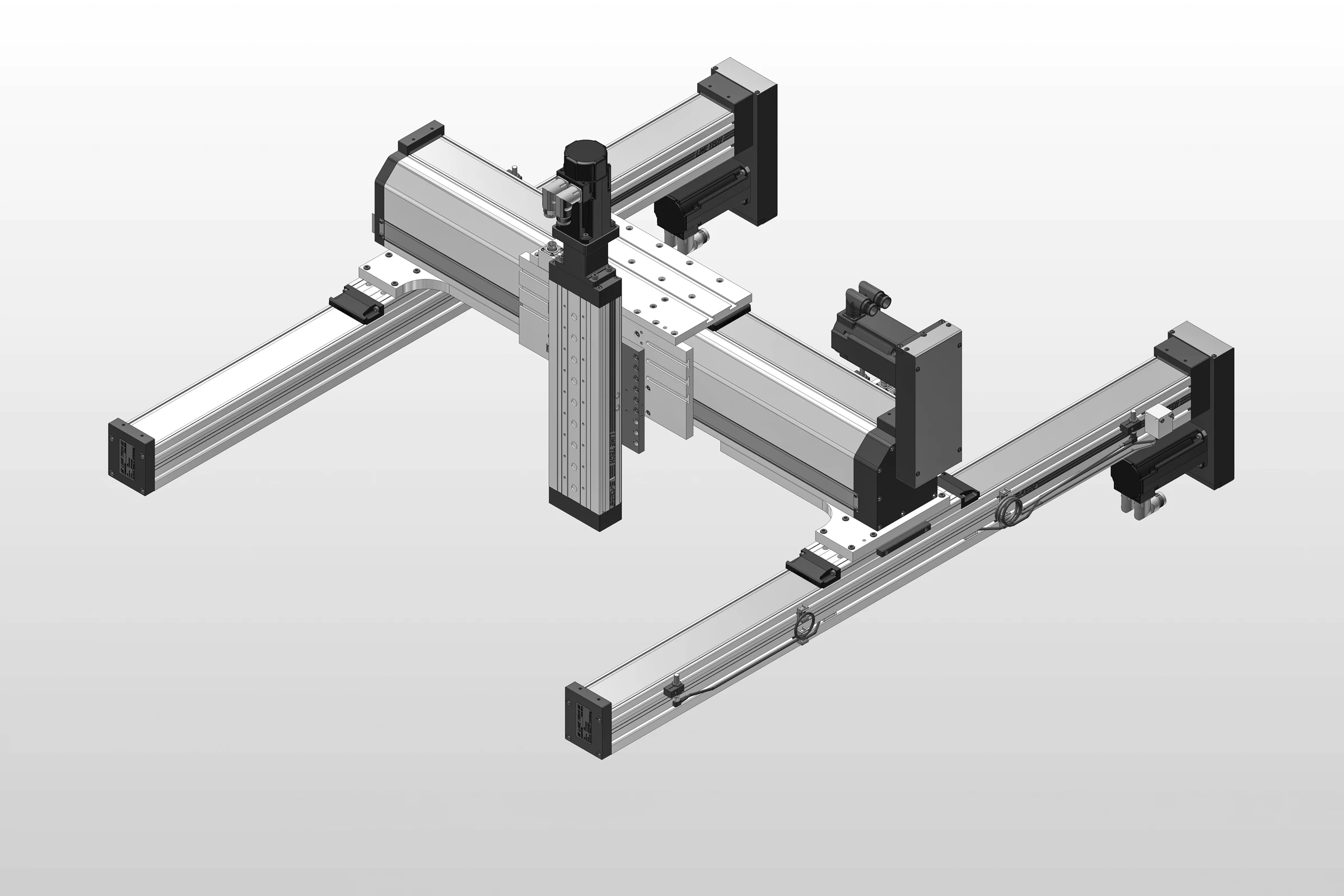

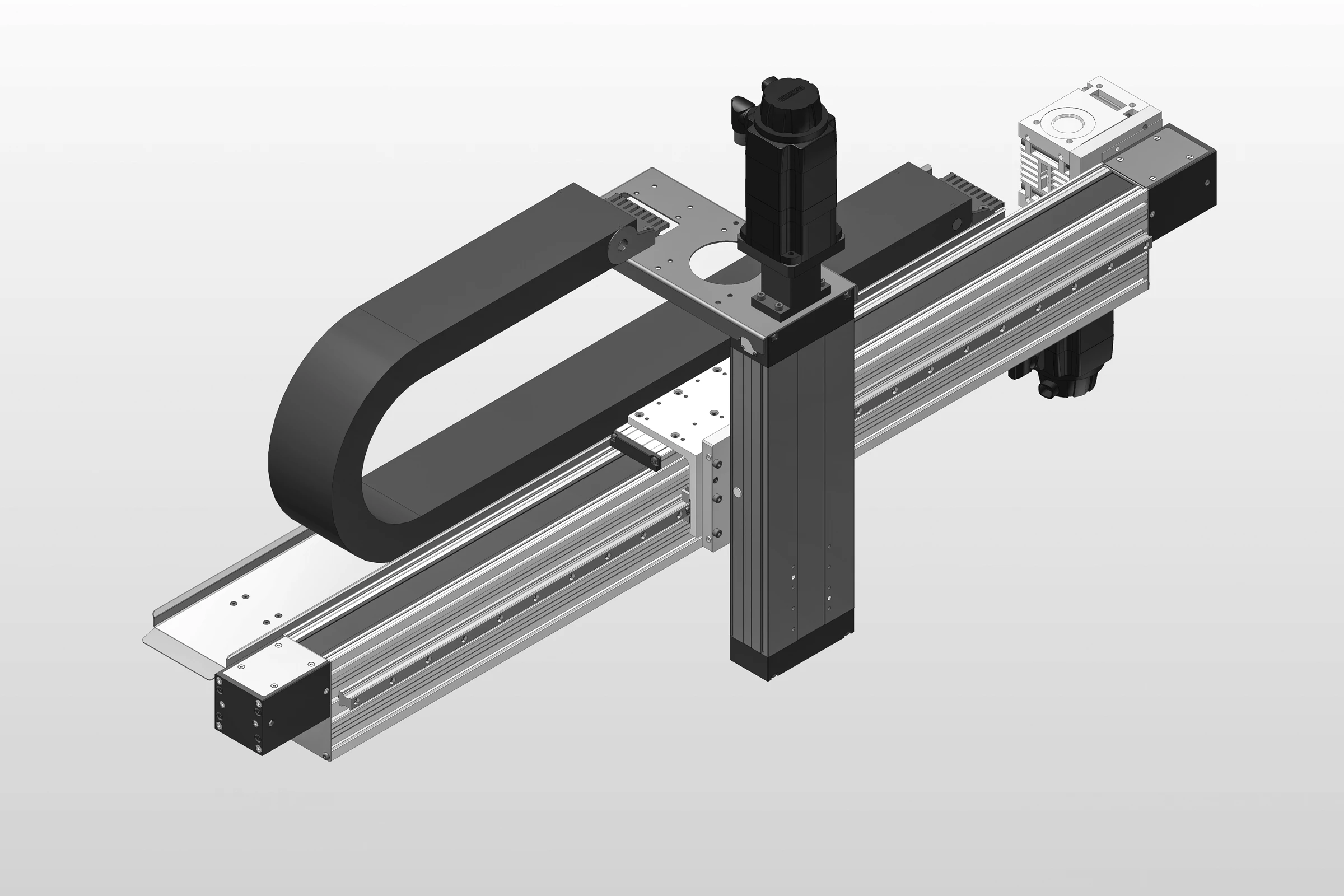

In addition to the in-house development and production of linear axes, LINE TECH specializes in the conception, design and manufacture of multi-axis system solutions. Since 1993, we have been supporting our customers with engineering services and supplying application-specific optimized linear systems for a wide range of functions.
