Linear rail guides – robust – precise – durable

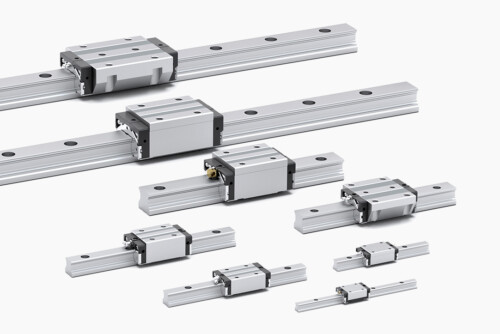

cpc Standard ball bearing linear rail guides ARC/HRC/ERC/ARD/HRD/ARU/HRU
are designed with four raceways in an O-arrangement for maximum torsional rigidity. The precision steel balls transmit applied forces at a contact angle of 45 degrees.


• Types: ARC, ARD, ERC, HRC, HRD, ARU, HRU
• Sizes: 15 – 55
• Designs: Standard (M) & Flange (F)
• Runner block length: long (L), standard (N) & kurz (S)
• Total hight (rail + runner block) H: 24 – 80 mm
• Runner block width W: 34 – 140 mm
• Runner block length L: 41.2 – 202 mm
• C_{ISO 100km}: 7.7 – 125 kN
• C₀: 12.1 – 226 kN
• Cover strip optional

• LINE TECH cutting and machining service for rail guides

Documents (PDF)

• cpc Linearführungen ARC/HRC/ERC/WRC/ARR

CAD data

• cpc Linearführungen ARC/HRC

Consulting

• sales@linetech.ch

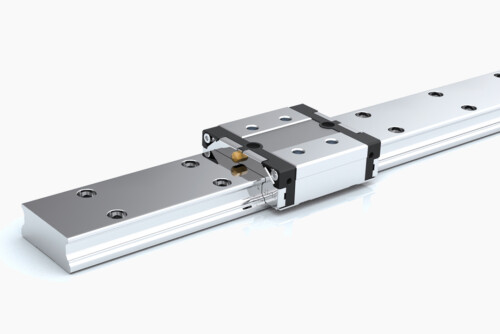

cpc Wide ball bearing linear rail guides WRC
are characterised by significantly higher lateral rigidity. Particularly suitable when only one guide rail is used as a linear guide.


• Type: WRC
• Sizes: 21/15, 27/20
• Designs: Standard (M) & Flange (F)
• Runner block length: standard (N)
• Total hight (rail + runner block) H: 21 – 27 mm
• Runner block width W: 54 – 80 mm
• Runner block length L: 57.5 – 70 mm
• C_{ISO 100km}: 9.9 – 17.1 kN
• C₀: 17.5 – 30 kN

• LINE TECH cutting and machining service for rail guides

Documents (PDF)

• cpc Linearführungen ARC/HRC/ERC/WRC/ARR

CAD data

• cpc Breite Linearführungen WRC

Consulting

• sales@linetech.ch

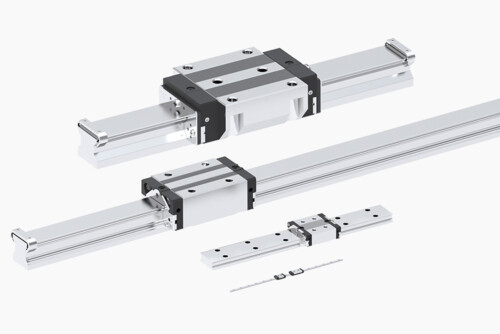

cpc Roller-type linear rail guides ARR / HRR / LRR
are particularly suitable for applications where external torques are present and high inertial forces must be compensated.


• Types:ARR, HRR, LRR
• Sizes: 15 – 55
• Designs: Standard (M) & Flange (F)
• Runner block length: standard (N), long (L), extra long (XL)
• Total hight (rail + runner block) H: 24 – 80 mm
• Runner block width W: 34 – 140 mm
• Runner block length L: 34 – 140 mm
• C_{ISO 100km}: 15.6 – 209 kN
• C₀: 43 – 615 kN

• LINE TECH cutting and machining service for rail guides

Documents (PDF)

• cpc Linearführungen ARC/HRC/ERC/WRC/ARR

CAD data

• cpc Rollenumlaufführungen ARR/HRR/LRR

Consulting

• sales@linetech.ch

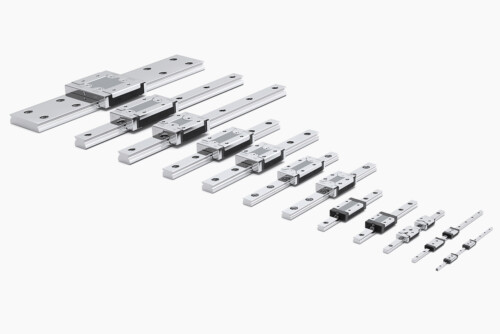

cpc Miniature ball bearing linear rail guide MR
with dimensions ranging from 2 to 15 mm are ideal for compact designs, offer high load capacity and ensure smooth and precise movement.


• Typ: MR
• Sizes: 02 – 15
• Designs: standard (M) & wide (W)
• Roller block length: standard (N), long (L)
• Total hight (rail + roller block) H: 3.2 – 16 mm
• Roller block width W: 6 – 60 mm
• Roller block length L: 11.8 – 76.7 mm
• C_{ISO 100km}: 158 – 6,725 kN
• C₀: 349 – 12,580 kN

• LINE TECH cutting and machining service for rail guides

Documents (PDF)

• cpc Miniatur-Linearführungen MR/ST

CAD data

• cpc Miniatur-Linearführungen MR-M / MR-W

Consulting

• sales@linetech.ch

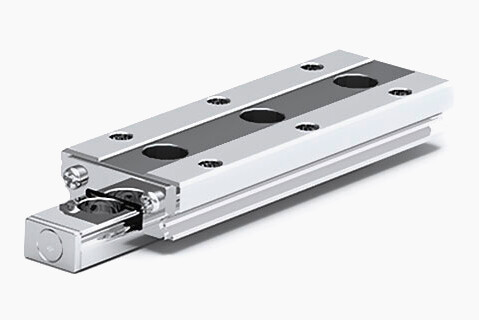

cpc Short-stroke linear guides ST
are finite guides. The monoblock allows for larger rolling elements, which enables higher loads and torques.


• Type: ST
• Sizes: 07 – 12
• Design: standard (M)
• Stroke max: 27 – 94 mm
• Total hight (rail + runner block) H: 30 – 100 mm
• Runner block width W: 17 – 27 mm
• Runner block length L: 8 – 13 mm
• C_{ISO 100km}: 910 – 4,050 kN
• C₀: 1,580 – 8,670 kN

Documents (PDF)

• cpc Miniatur-Linearführungen MR/ST

CAD data

• cpc Miniatur Kurzhub-Linearführungen ST

Consulting

• sales@linetech.ch

Accessories and tools for cpc linear guides

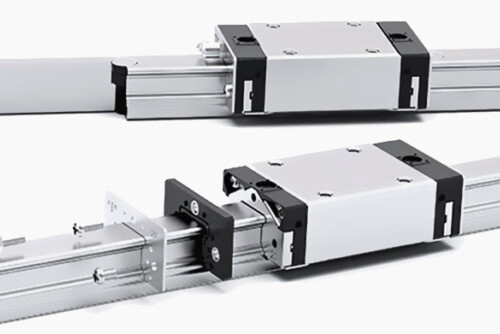

• External NBR seal
  ARC/HRC/ARR/HRR/LRR
  For applications in harsh environmental conditions; dustproof.
  Document (PDF): cpc Externe NBR-Dichtung

• Metal-plastic caps
  ARC/HRC/ARR/HRR/LRR/WRC
  Patented design for closing rail bolting holes.
  Document (PDF): cpc Metall-Kunststoff-Kappen

• Metal rail stop
  MR
  Protective devices that prevent the unintended extension of a runner block.
  Document (PDF): cpc Metall-Schienenanschlag

• Carbon steel guides
  MR
  Rails and runner blocks with increased hardness for an even longer service life.
  Document (PDF): cpc Kohlenstoffstahl-Führungen

• Lubrication kit
  For runner blocks of all series and sizes
  Lubrication unit with 3 different nozzle adapters.
  Document (PDF): cpc Schmier-Kit

Consulting

• sales@linetech.ch

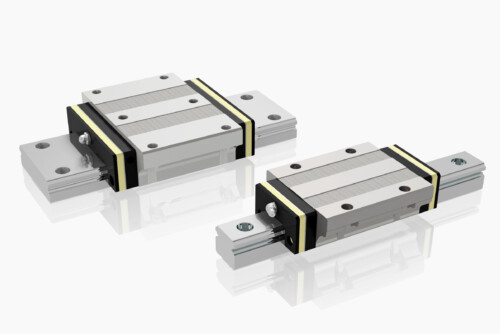

NSK linear rail guides from the NH/NS and DH/DS series, roller recirculating guides from the RA series, optionally with K1-L long-life lubrication unit for low-maintenance operation.


• Roller blocks in various widths, heights and lengths for a wide range of loads
• Various preload and accuracy classes
• Dust protection components and lubrication accessories
• Optional K1-L long-life lubrication unit for low-maintenance operation
• NH/NS and DH/DS series: Sizes 15–65
• Miniature series PU/PE: Sizes 5–15
• RA-Series: Sizes 15–65
• Rail length up to 4 m
• Maximum permissible travel speeds up to 300 m/min

• LINE TECH cutting and machining service for rail guides

Documents (PDF)

• NSK Linear Guides NH/NS
• NSK Linear Guides PU/PE
• NSK Linear Guides RA

CAD data

• NSK Linearführungen
• NSK Rollenumlaufführungen
• NSK Translide Führungen

Consulting

• sales@linetech.ch
