Linear rail guides – the state-of-the-art guide element

Linear rail guides – robust – precise – durable

A wide variety of linear guide designs for all applications and maximum loads – robust and precise with a long service life.

CPC contract partner Switzerland: LINE TECH is the exclusive representative for the entire CPC product range in Switzerland.

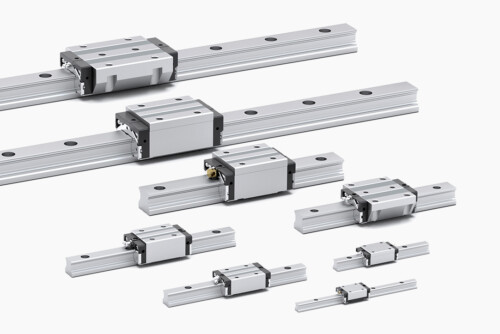

cpc Standard linear guides

Cpc Standard Linearfuehrungen

cpc Standard ball bearing linear rail guides ARC/HRC/ERC/ARD/HRD/ARU/HRU
are designed with four raceways in an O-arrangement for maximum torsional rigidity. The precision steel balls transmit applied forces at a contact angle of 45 degrees.


  • Types: ARC, ARD, ERC, HRC, HRD, ARU, HRU
  • Sizes: 15 – 55
  • Designs: Standard (M) & Flange (F)
  • Runner block length: long (L), standard (N) & kurz (S)
  • Total hight (rail + runner block) H: 24 – 80 mm
  • Runner block width W: 34 – 140 mm
  • Runner block length L: 41.2 – 202 mm
  • CISO 100km: 7.7 – 125 kN
  • C0: 12.1 – 226 kN
  • Cover strip optional

  • LINE TECH cutting and machining service for rail guides

Documents (PDF)

CAD data

Consulting

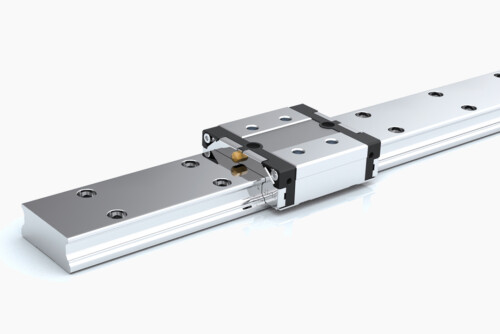

cpc Wide linear guides

Cpc Breite Linearfuehrungen

cpc Wide ball bearing linear rail guides WRC
are characterised by significantly higher lateral rigidity. Particularly suitable when only one guide rail is used as a linear guide.


  • Type: WRC
  • Sizes: 21/15, 27/20
  • Designs: Standard (M) & Flange (F)
  • Runner block length: standard (N)
  • Total hight (rail + runner block) H: 21 – 27 mm
  • Runner block width W: 54 – 80 mm
  • Runner block length L: 57.5 – 70 mm
  • CISO 100km: 9.9 – 17.1 kN
  • C0: 17.5 – 30 kN

  • LINE TECH cutting and machining service for rail guides

Documents (PDF)

CAD data

Consulting

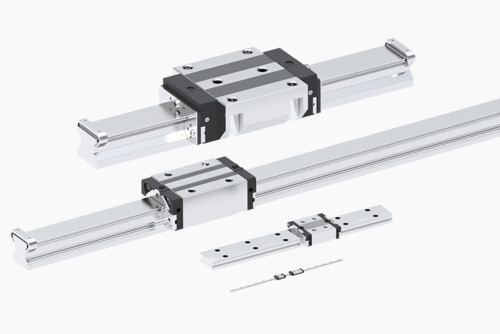

cpc Roller-type linear guides

Cpc Rollenfuehrungen 1

cpc Roller-type linear rail guides ARR / HRR / LRR
are particularly suitable for applications where external torques are present and high inertial forces must be compensated.


  • Types:ARR, HRR, LRR
  • Sizes: 15 – 55
  • Designs: Standard (M) & Flange (F)
  • Runner block length: standard (N), long (L), extra long (XL)
  • Total hight (rail + runner block) H: 24 – 80 mm
  • Runner block width W: 34 – 140 mm
  • Runner block length L: 34 – 140 mm
  • CISO 100km: 15.6 – 209 kN
  • C0: 43 – 615 kN

  • LINE TECH cutting and machining service for rail guides

Documents (PDF)

CAD data

Consulting

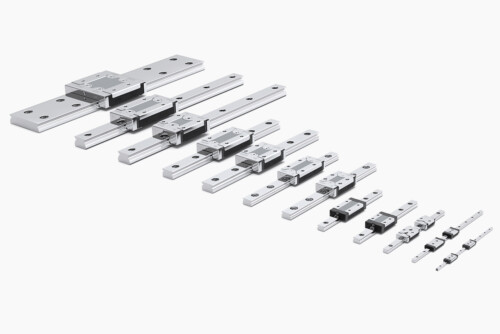

cpc Miniature linear guides

Cpc Miniatur Linearschienenfuehrungen

cpc Miniature ball bearing linear rail guide MR
with dimensions ranging from 2 to 15 mm are ideal for compact designs, offer high load capacity and ensure smooth and precise movement.


  • Typ: MR
  • Sizes: 02 – 15
  • Designs: standard (M) & wide (W)
  • Roller block length: standard (N), long (L)
  • Total hight (rail + roller block) H: 3.2 – 16 mm
  • Roller block width W: 6 – 60 mm
  • Roller block length L: 11.8 – 76.7 mm
  • CISO 100km: 158 – 6,725 kN
  • C0: 349 – 12,580 kN

  • LINE TECH cutting and machining service for rail guides

Documents (PDF)

CAD data

Consulting

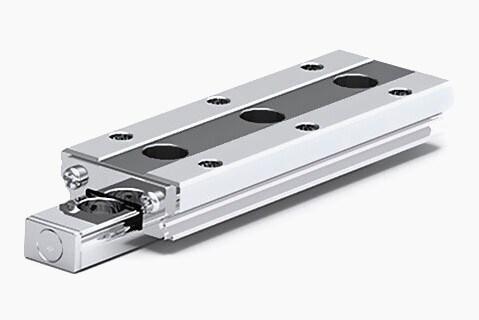

cpc Short-stroke linear guides

cpc-Kurzhub-Linearfuehrung_1

cpc Short-stroke linear guides ST
are finite guides. The monoblock allows for larger rolling elements, which enables higher loads and torques.


  • Type: ST
  • Sizes: 07 – 12
  • Design: standard (M)
  • Stroke max: 27 – 94 mm
  • Total hight (rail + runner block) H: 30 – 100 mm
  • Runner block width W: 17 – 27 mm
  • Runner block length L: 8 – 13 mm
  • CISO 100km: 910 – 4,050 kN
  • C0: 1,580 – 8,670 kN

Documents (PDF)

CAD data

Consulting

cpc accessories

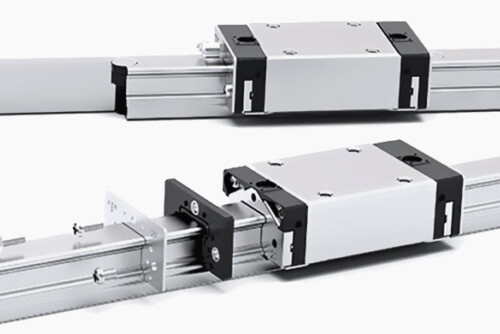

Cpc options external NBR seal

Accessories and tools for cpc linear guides


  • External NBR seal
    ARC/HRC/ARR/HRR/LRR
    For applications in harsh environmental conditions; dustproof.
    Document (PDF): cpc Externe NBR-Dichtung

  • Metal-plastic caps
    ARC/HRC/ARR/HRR/LRR/WRC
    Patented design for closing rail bolting holes.
    Document (PDF): cpc Metall-Kunststoff-Kappen

  • Metal rail stop
    MR
    Protective devices that prevent the unintended extension of a runner block.
    Document (PDF): cpc Metall-Schienenanschlag

  • Carbon steel guides
    MR
    Rails and runner blocks with increased hardness for an even longer service life.
    Document (PDF): cpc Kohlenstoffstahl-Führungen

  • Lubrication kit
    For runner blocks of all series and sizes
    Lubrication unit with 3 different nozzle adapters.
    Document (PDF): cpc Schmier-Kit

Consulting

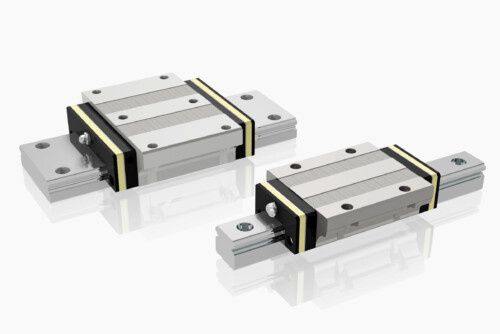

NSK linear guides & roller guides

NSK Linearfuehrungen

NSK linear rail guides from the NH/NS and DH/DS series, roller recirculating guides from the RA series, optionally with K1-L long-life lubrication unit for low-maintenance operation.


  • Roller blocks in various widths, heights and lengths for a wide range of loads
  • Various preload and accuracy classes
  • Dust protection components and lubrication accessories
  • Optional K1-L long-life lubrication unit for low-maintenance operation
  • NH/NS and DH/DS series: Sizes 15–65
  • Miniature series PU/PE: Sizes 5–15
  • RA-Series: Sizes 15–65
  • Rail length up to 4 m
  • Maximum permissible travel speeds up to 300 m/min

  • LINE TECH cutting and machining service for rail guides

Documents (PDF)

CAD data

Consulting
