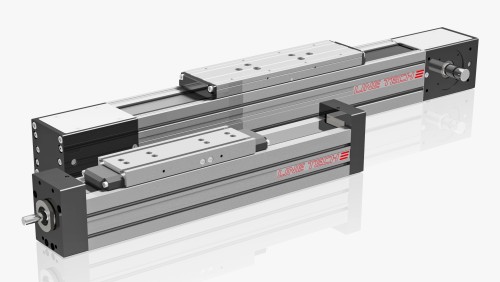

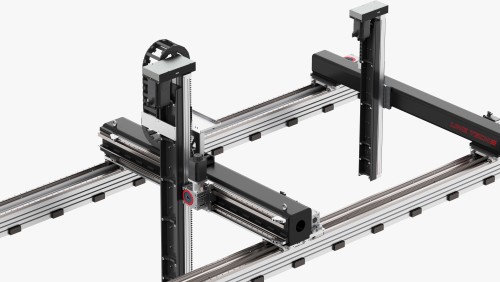

LINE TECH – LINEAR SYSTEMS · LINEAR UNITS · LINEAR COMPONENTS

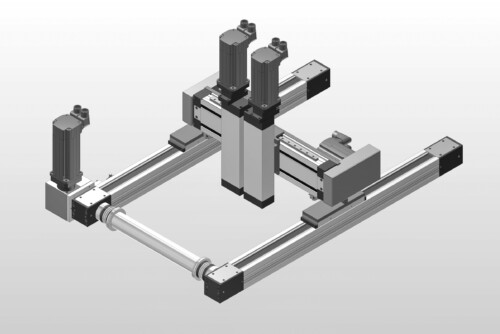

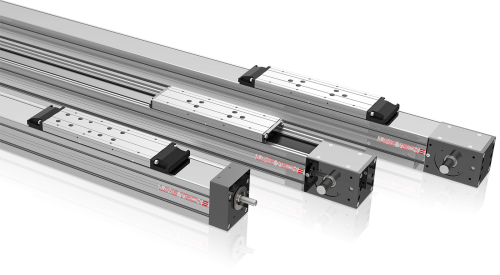

for applications with longer strokes and high travel speeds under medium loads

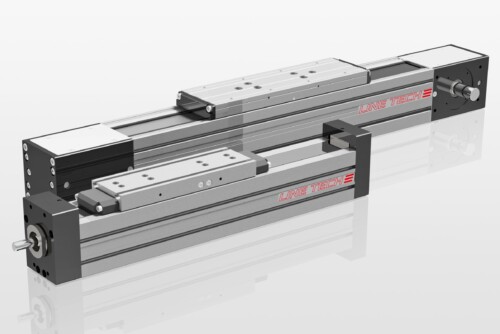

With toothed belt drive (Type LM…Z…):

• 3 sizes, each in 2 versions
• Stroke up to 7650 mm

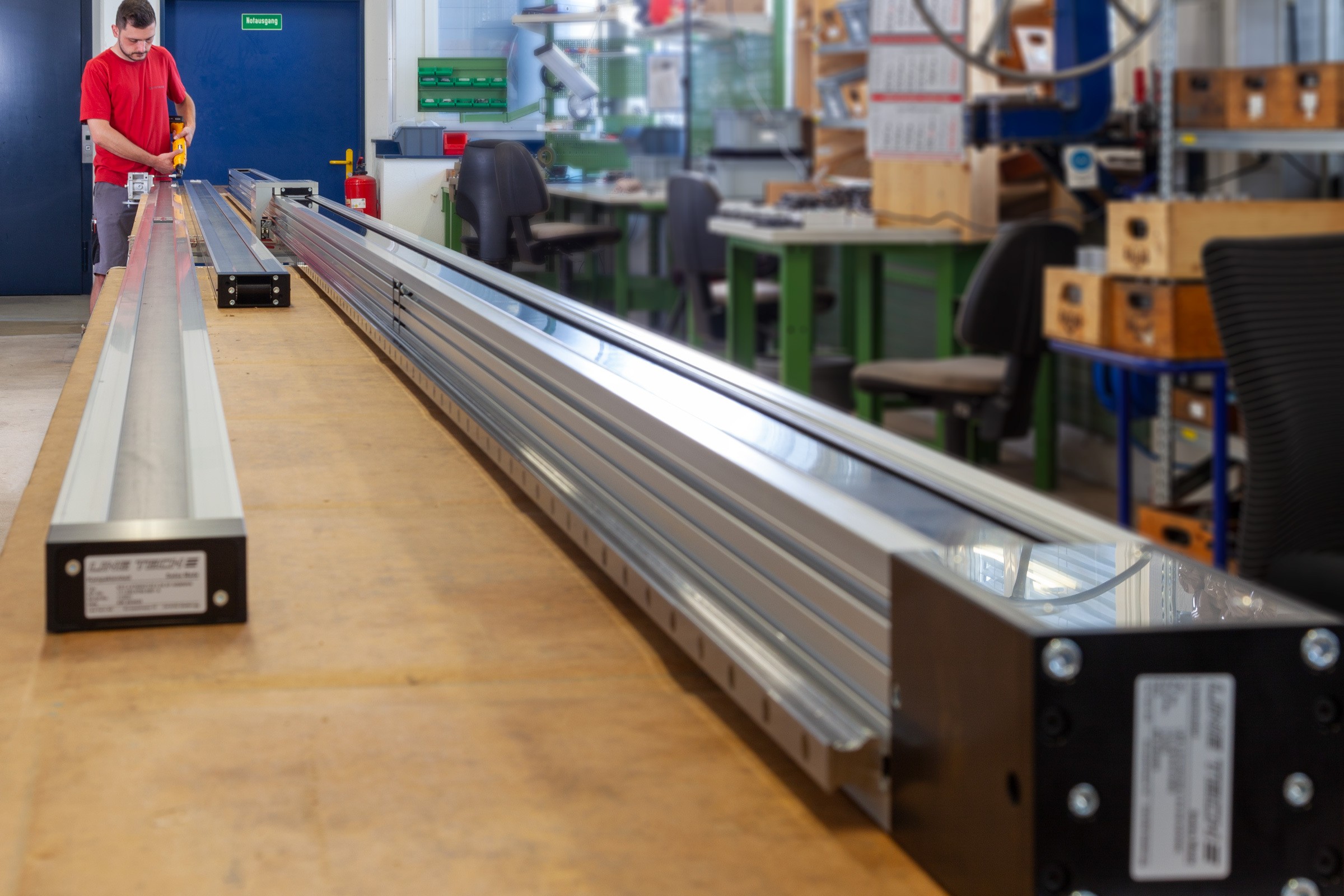

• XL version : Stroke up to 15'350 mm
• C₀: 1560…5280 N
• v_max = 5 m/s | a_max = 50 m/s²
• Repeatability <0.2 mm/1000 mm
• Positioning accuracy 200 µm/1000 mm


With ball screw drive (Type LM…R…):

• 3 sizes, each in 2 versions
• Stroke up to 3000 mm
• C₀: 4551…11538 N | C: 4327…8947 N
• v_max = 1.6 m/s | a_max = 10 m/s²
• Repeatability <0.03 mm/1000 mm
• Positioning accuracy 53 µm/300 mm

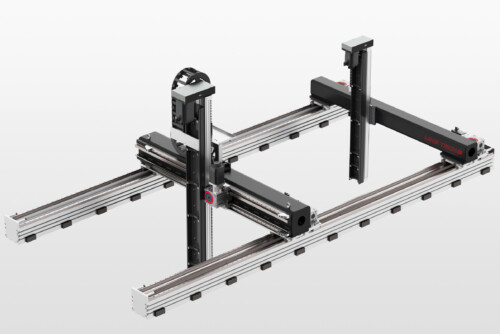

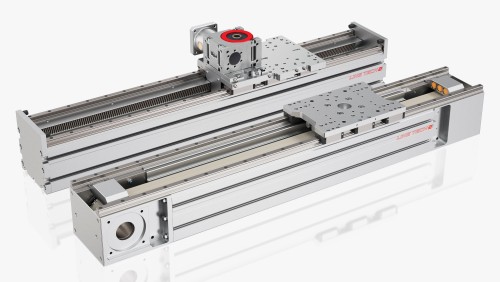

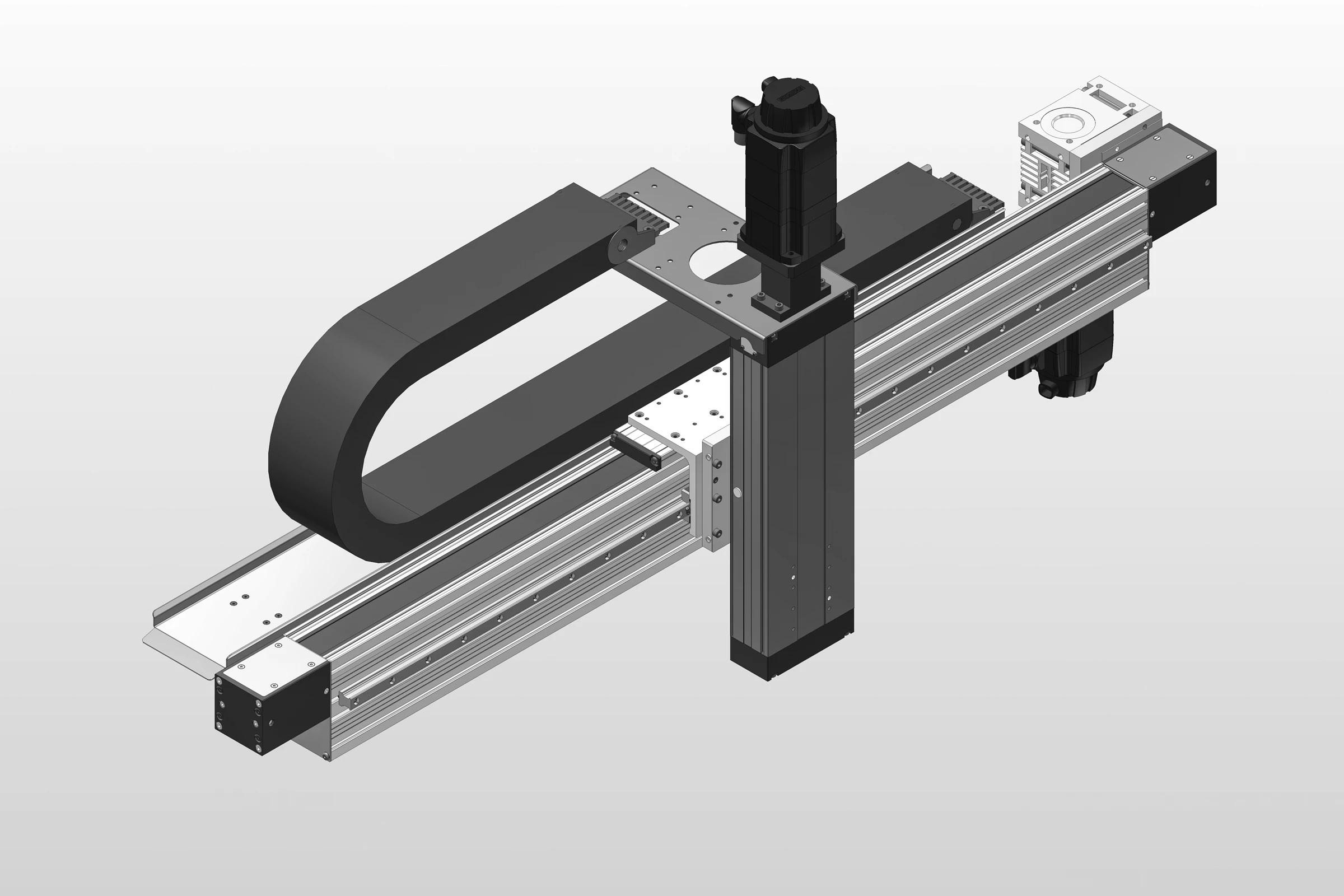

for highly dynamic applications with high loads and very fast cycle times

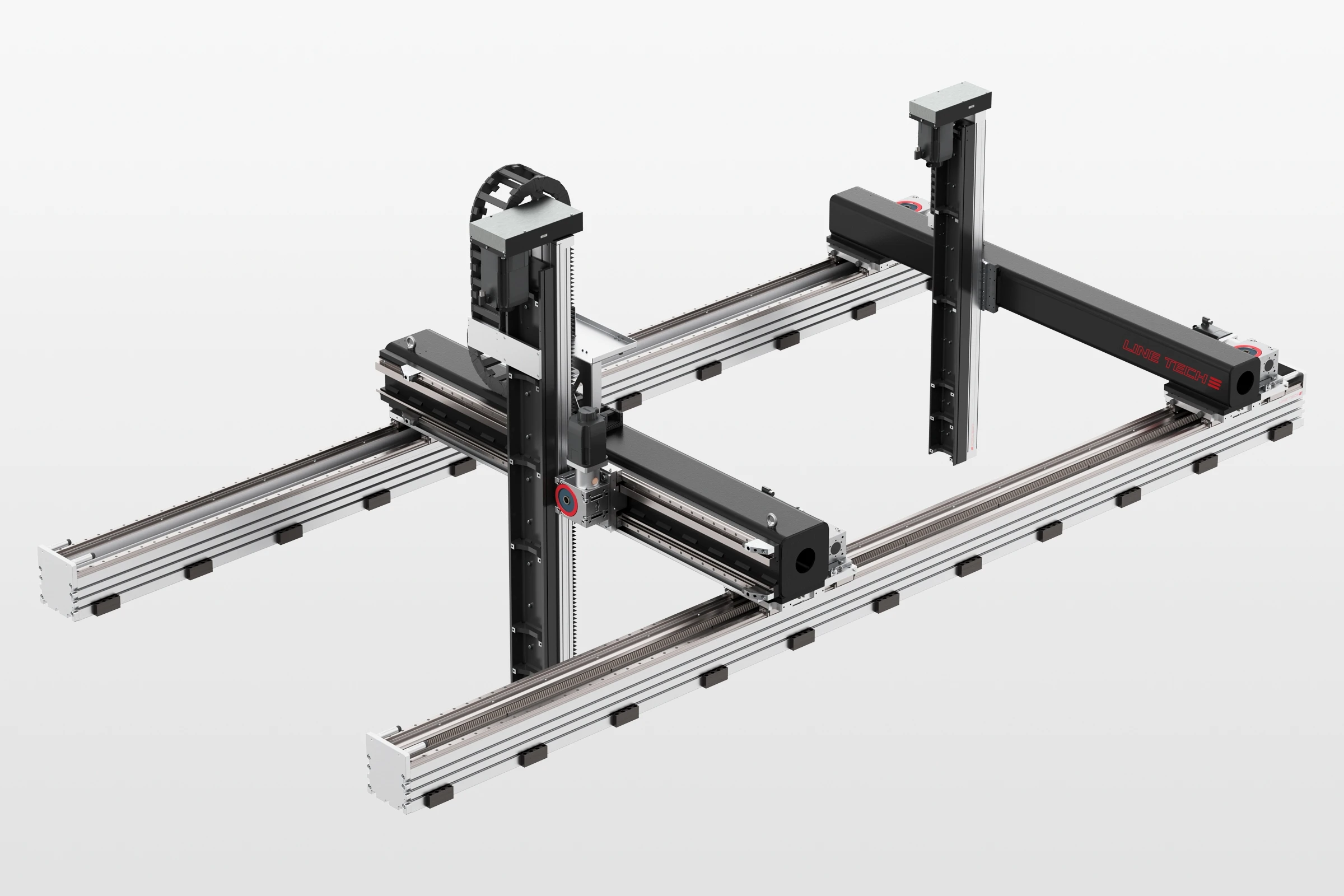

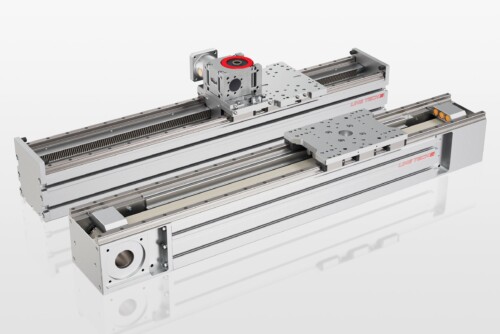

With toothed belt drive (Type DM…ZR…):

• 2 sizes
• Stroke up to 6360 mm
• XL version: Stroke up to 13'160 mm
• C₀: 4500…7200 N
• v_max = 5 m/s | a_max = 50 m/s²
• Repeatability <0.1 mm/1000 mm
• Positioning accuracy 200 µm/1000 mm


With rack and pinion drive (Type DM…ZS…):

• 2 sizes
• Stroke up to 5550 mm
• XL version: Stroke up to 19'150 mm
• v_max = 5 m/s | a_max = 50 m/s²
• Repeatability < 0.04 mm/1000 mm
• Positioning accuracy 36/37 µm/1000 mm

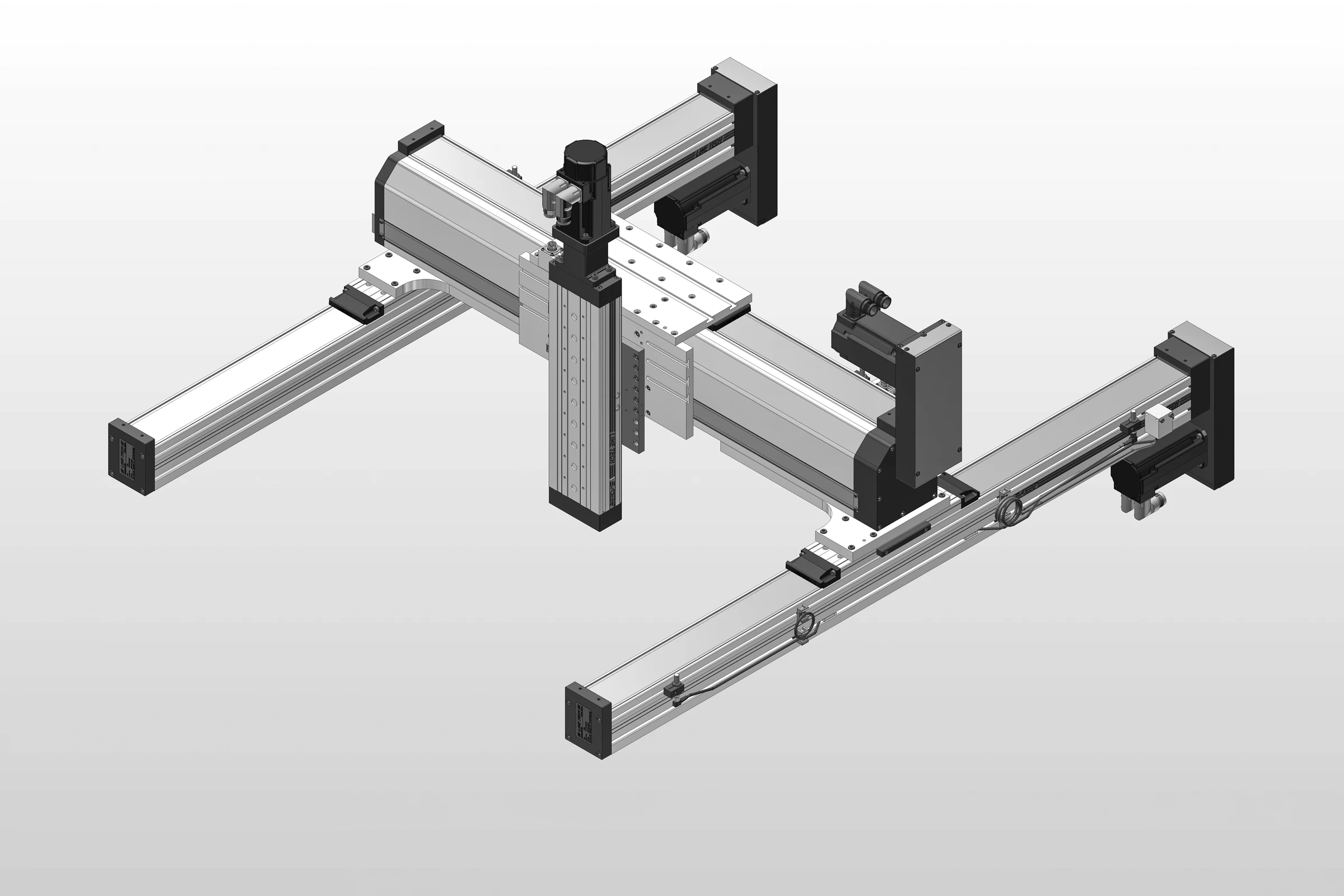

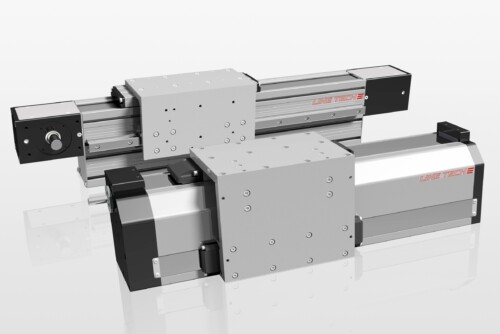

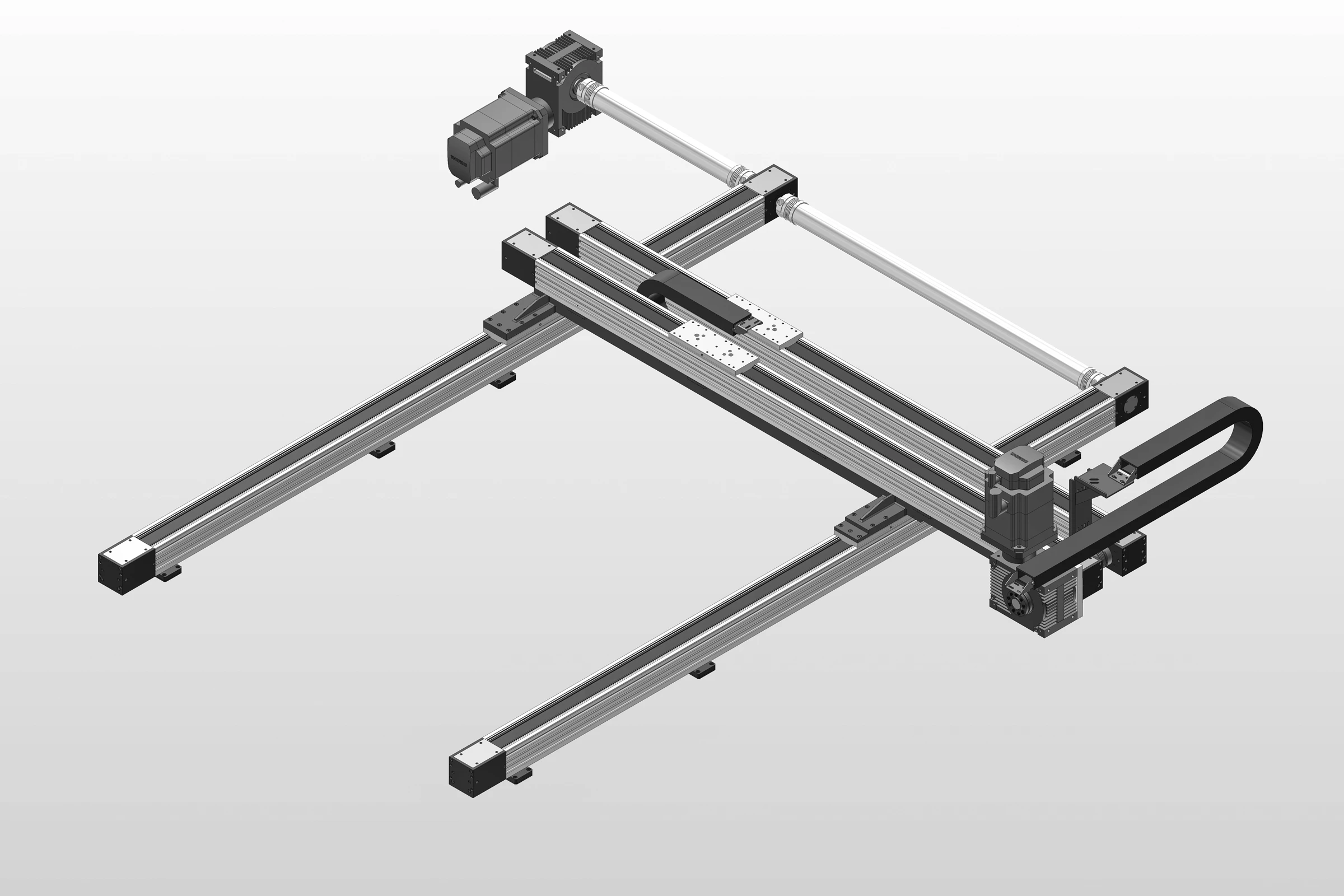

are especially suitable as self-supporting long-stroke portal axes or axes with higher intrinsic inertia.

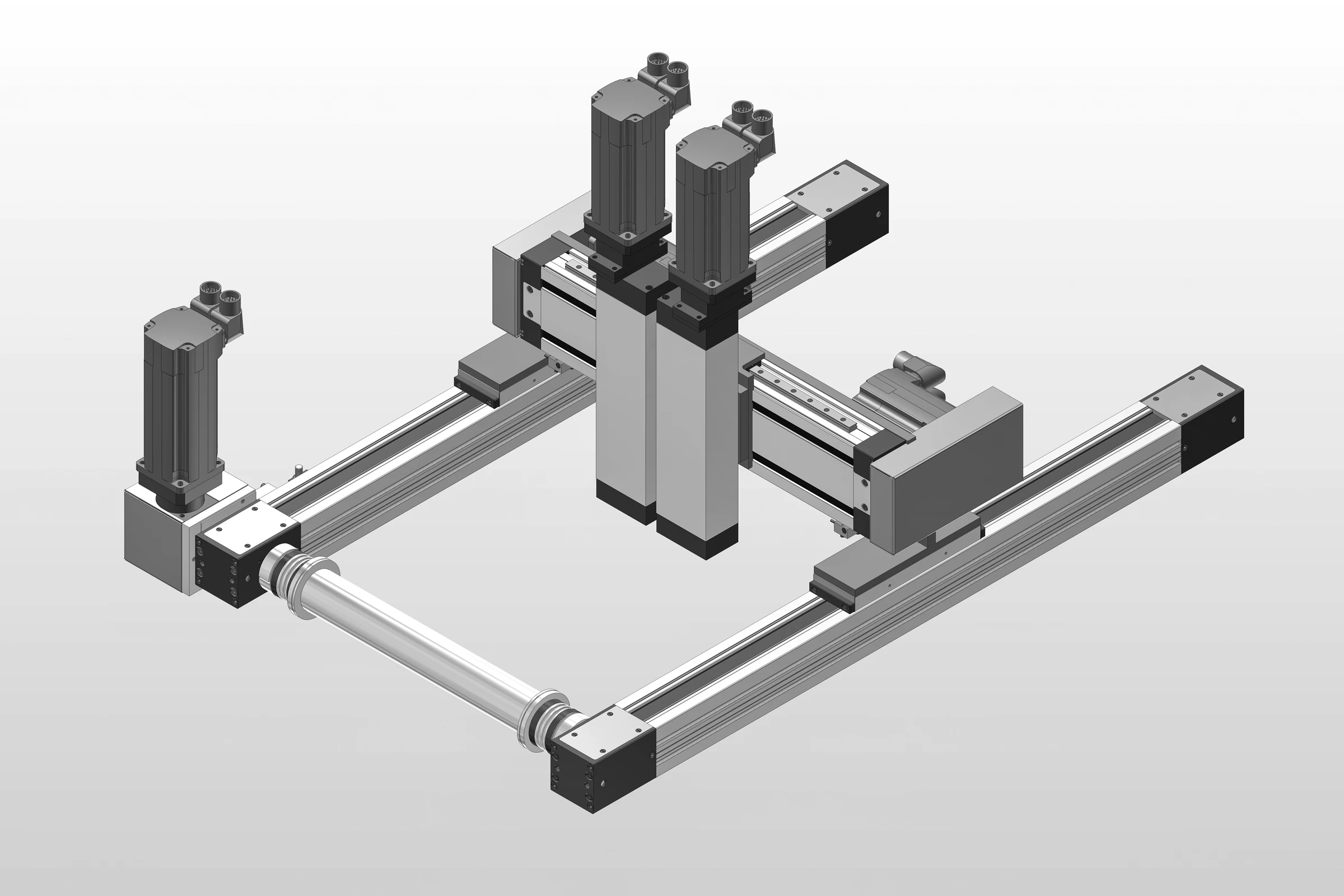

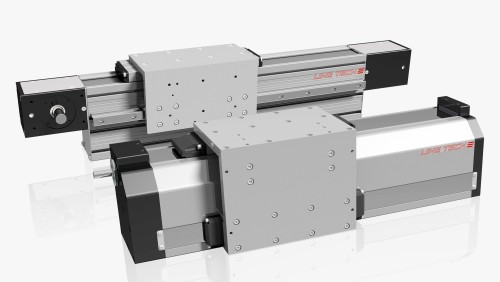

With toothed belt drive (Type BM…Z…):

• 1 size in 2 versions
• Stroke up to 6,180 mm
• XL version: Stroke up to 12,480 mm
• C₀: 2200 N
• v_max = 5 m/s | a_max = 50 m/s²
• Repeatability <0.2 mm/1000 mm
• Positioning accuracy 200 µm/1000 mm


With ball screw drive (Type BM…R…):

• 1 size in 3 versions
• Stroke up to 3,000 mm
• C₀: 5705 N | C: 4912 N
• v_max = 1.6 m/s | a_max = 10 m/s²
• Repeatability <0.03 mm/1000 mm
• Positioning accuracy 52 µm/300 mm

for applications with medium-to-high load and precision requirements

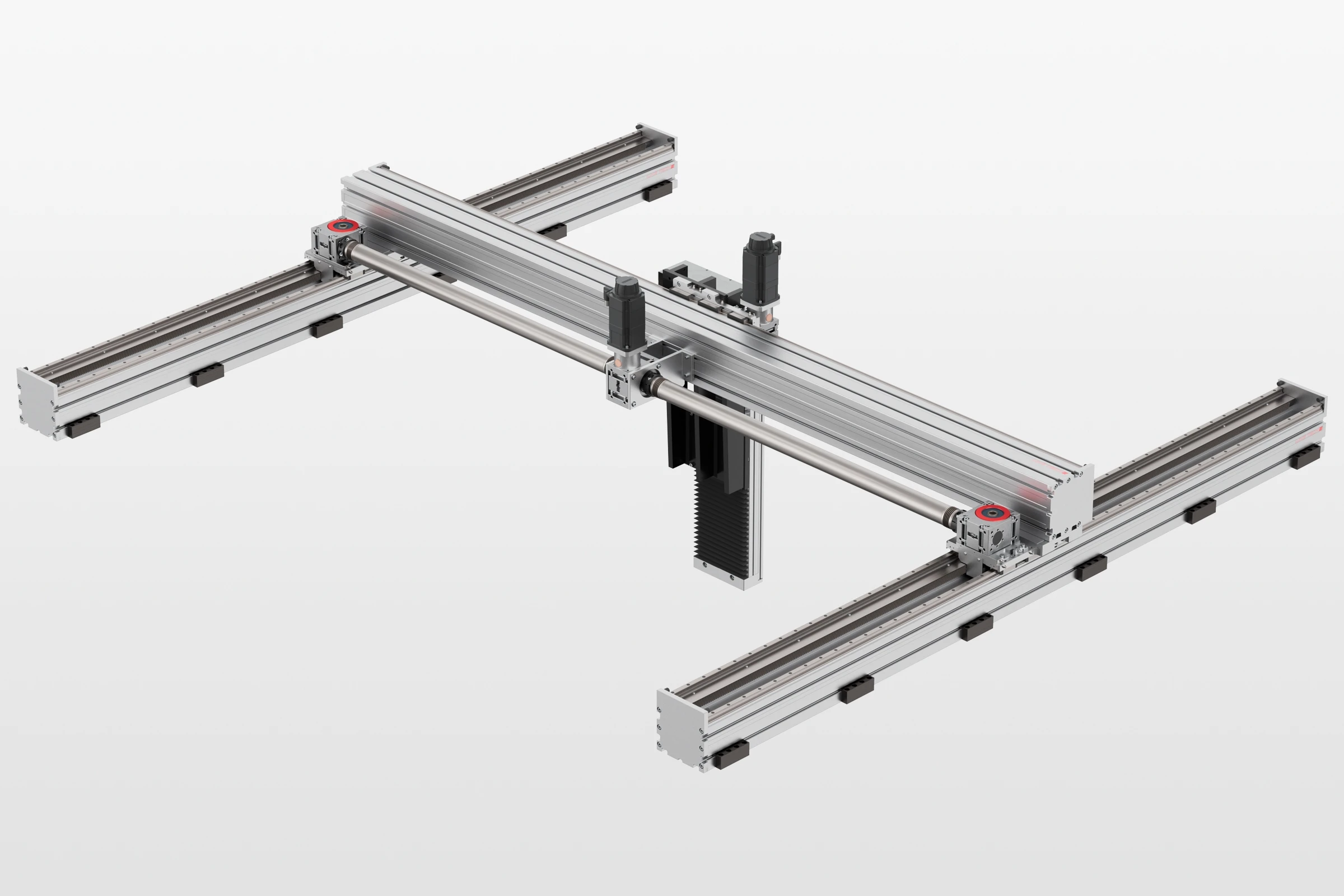

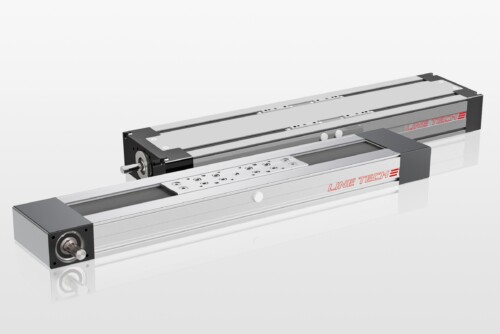

With toothed belt drive (Type KE…Z…):

• 1 size
• Stroke up to 5,700 mm
• XL version: Stoke up to 12,500 mm
• C₀: 2100 N
• v_max = 5 m/s | a_max = 50 m/s²
• Repeatability <0.2 mm/1000 mm
• Positioning accuracy 200 µm/1000 mm


With ball screw drive(Type KE…R…):

• 3 sizes
• Stroke up to 1,850 mm
• C₀: 3333…5705 N | C: 3099…4912 N
• v_max = 1.6 m/s | a_max = 10 m/s²
• Repeatability <0.03 mm/1000 mm
• Positioning accuracy 52 µm/1000 mm

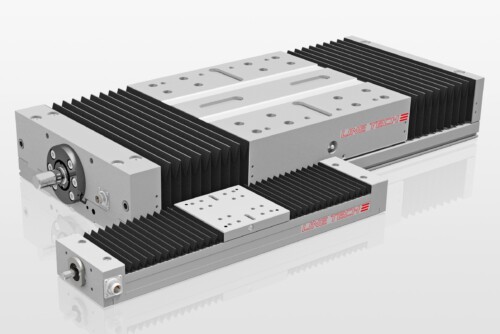

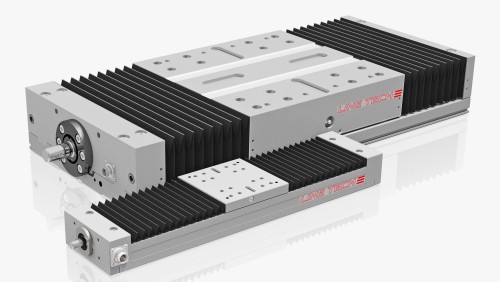

for the highest performance and precision requirements


With ball screw drive (Type PE…R…):

• 3 sizes
• Stroke up to 3,000 mm
• C₀: 4551…11538 N | C: 4327…8947 N
• v_max = 1.6 m/s | a_max = 10 m/s²
• Repeatability <0.01 mm/1000 mm
• Positioning accuracy 52 µm/1000 mm
