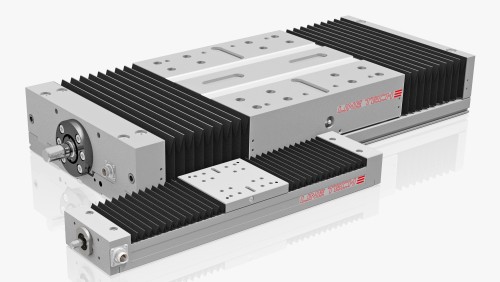

Line Tech Header PE
Positioning units for the highest performance and precision requirements

LINE TECH Positioning units PE…R…

Positioning units with ball screw drive for the highest performance and precision requirements

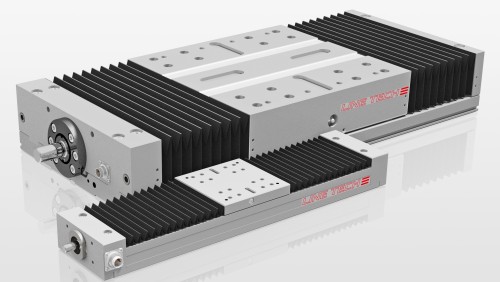

Line Tech Positioniereinheit / Positioning unit PE

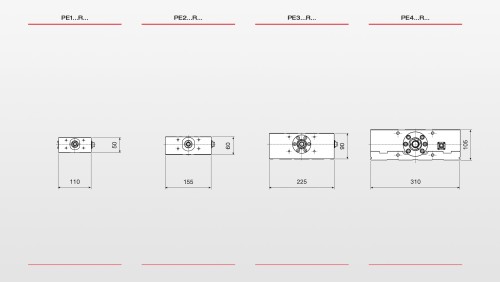

Line Tech PE Profile

Positioning unit PE

for the highest performance and precision requirements

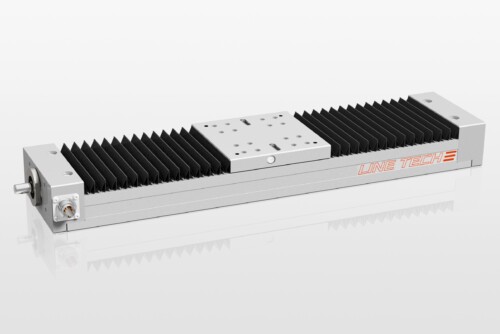

With ball screw drive (Type PE…R…):

  • 3 sizes
  • Stroke up to 3,000 mm
  • C0: 4551…11538 N | C: 4327…8947 N
  • vmax = 1.6 m/s | amax = 10 m/s2
  • Repeatability <0.01 mm/1000 mm
  • Positioning accuracy 52 µm/1000 mm

LINE TECH Positioning units PE

are developed for the highest performance and precision requirements. These linear systems, available in four sizes (PE1, PE2, PE3 and PE4), have a modular design and are each equipped with two linear rail guides with a total of 4 runner blocks. Ball screws of various types are used as drives.
LINE TECH positioning units are thus particularly suitable for applications with the highest demands on precision, rigidity and load rating..

Design and advantages

  • Ready-to-install positioning units
  • Compact design
  • Solid aluminium profile as base carrier
  • Solid aluminium carriage
  • High-precision movement combined with highest load ratings and extreme rigidity
  • Ball screw drive
  • Bellows cover
  • Simple gearbox and motor mounting
  • Suitable for cross-table mounting and multi-axis systems
  • Design can be adapted to the
    application*

Documents

Links



*Adaptations to meet specific customer needs can be realized flexibly and at short notice thanks to our JIT production facility – from minor additional processing to complete application-specific solutions.
Our customers always benefit from short delivery times thanks to our large warehouse with correspondingly high availability
