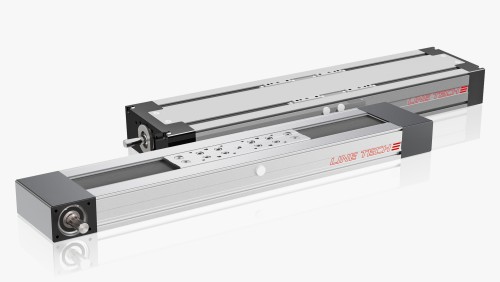

Line Tech Header KE
Compact units for medium-to-high load and precision requirements

LINE TECH Compact units KE…Z… / KE…R…

Compact units with toothed belt drive or ball screw drive for applications with medium-to-high load and precision requirements

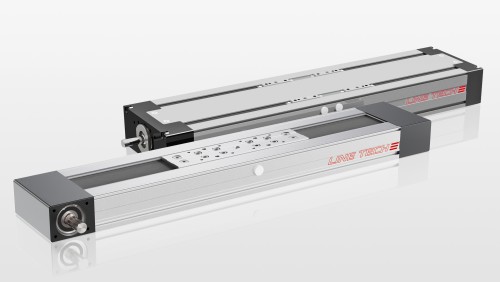

Line Tech Kompakteinheit / Compact unit KE Z R

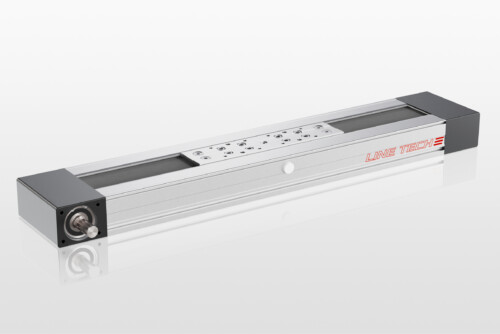

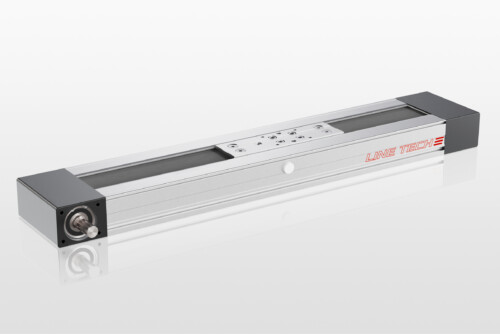

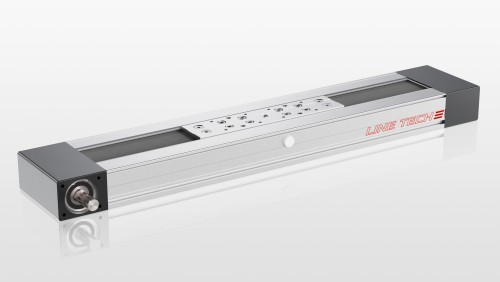

LineTech KE-4-Z

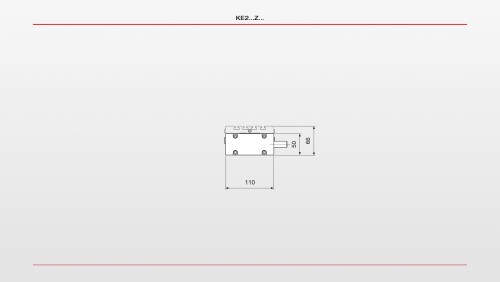

Line Tech KE Z Profil

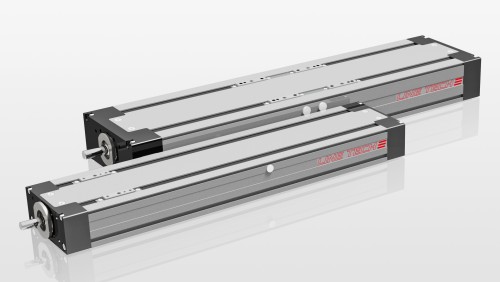

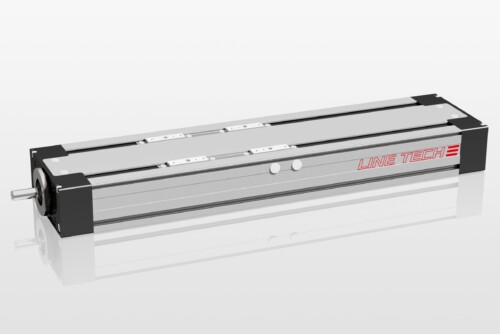

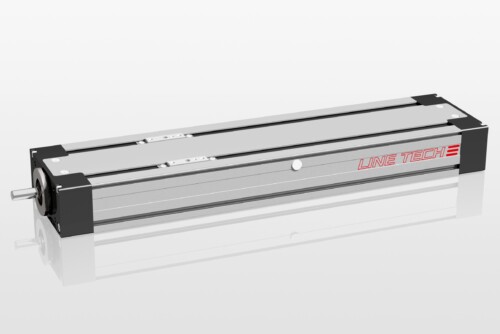

Line Tech KE R

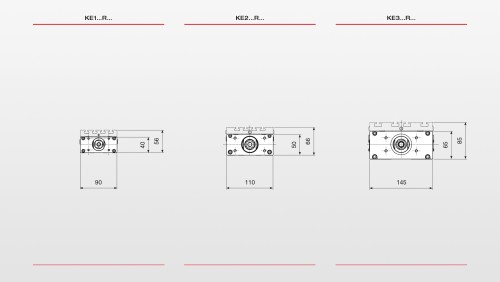

Line Tech KE R Profile

Compact units KE

for applications with medium-to-high load and precision requirements

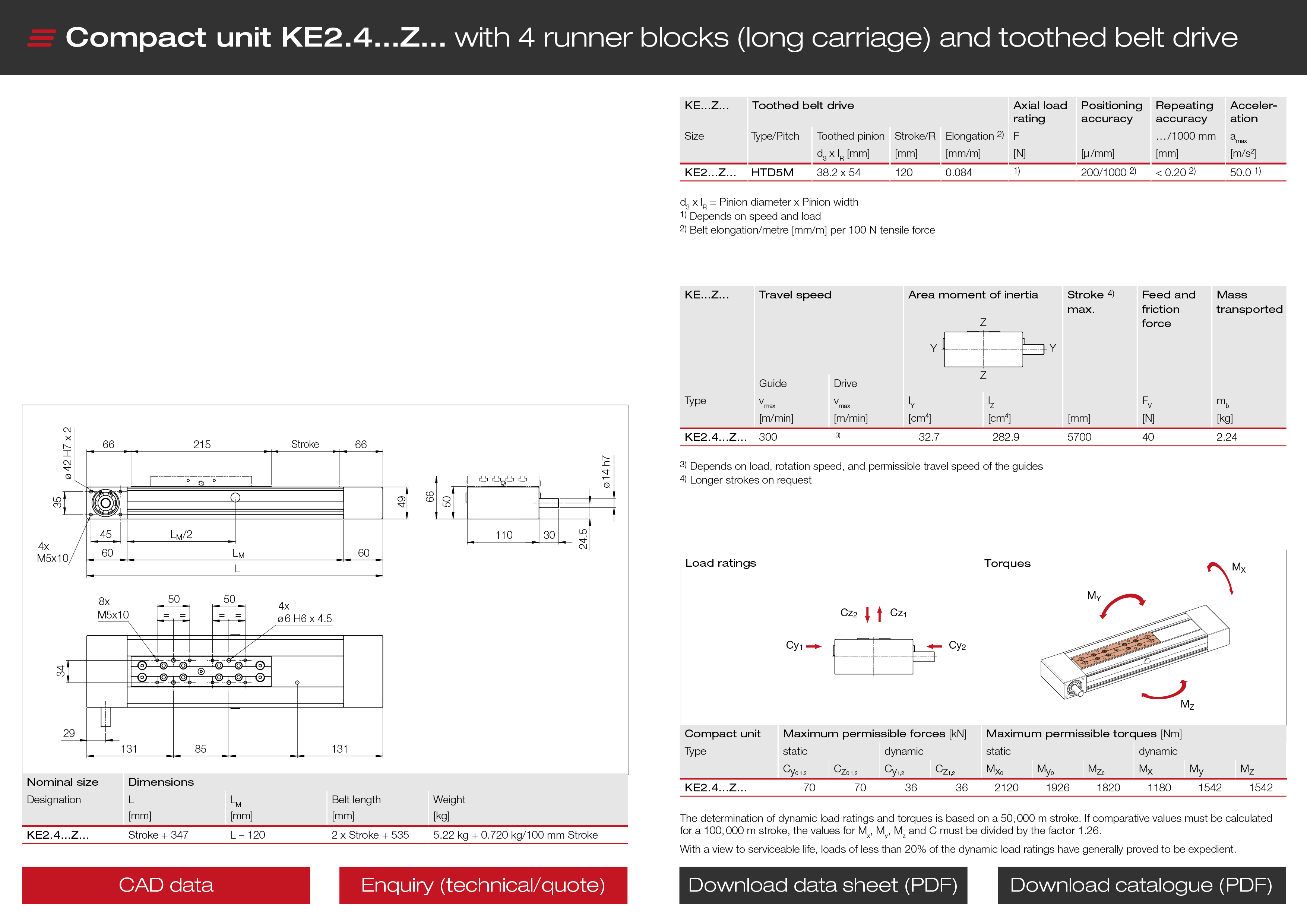

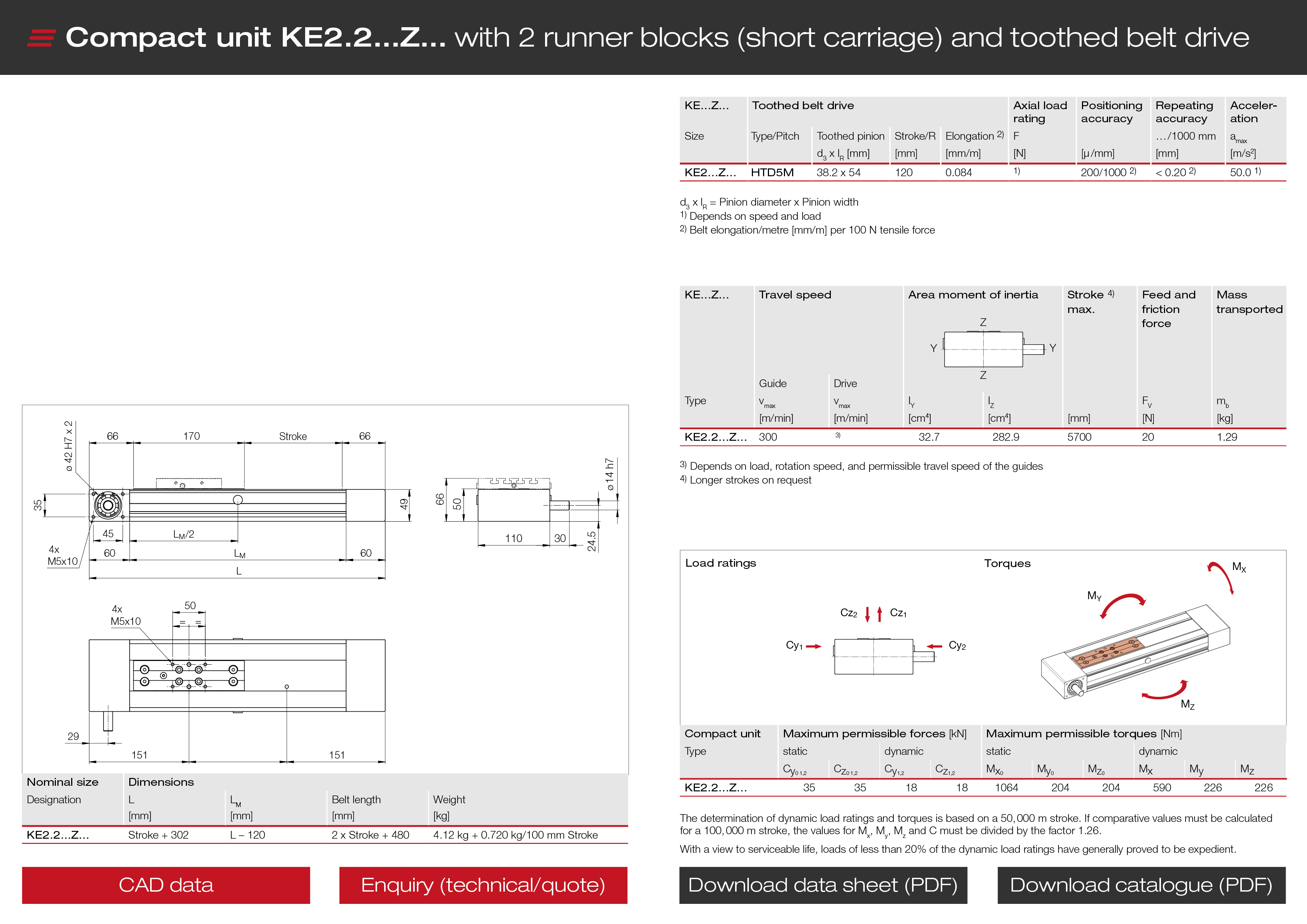

With toothed belt drive (Type KE…Z…):

  • 1 size
  • Stroke up to 5,700 mm

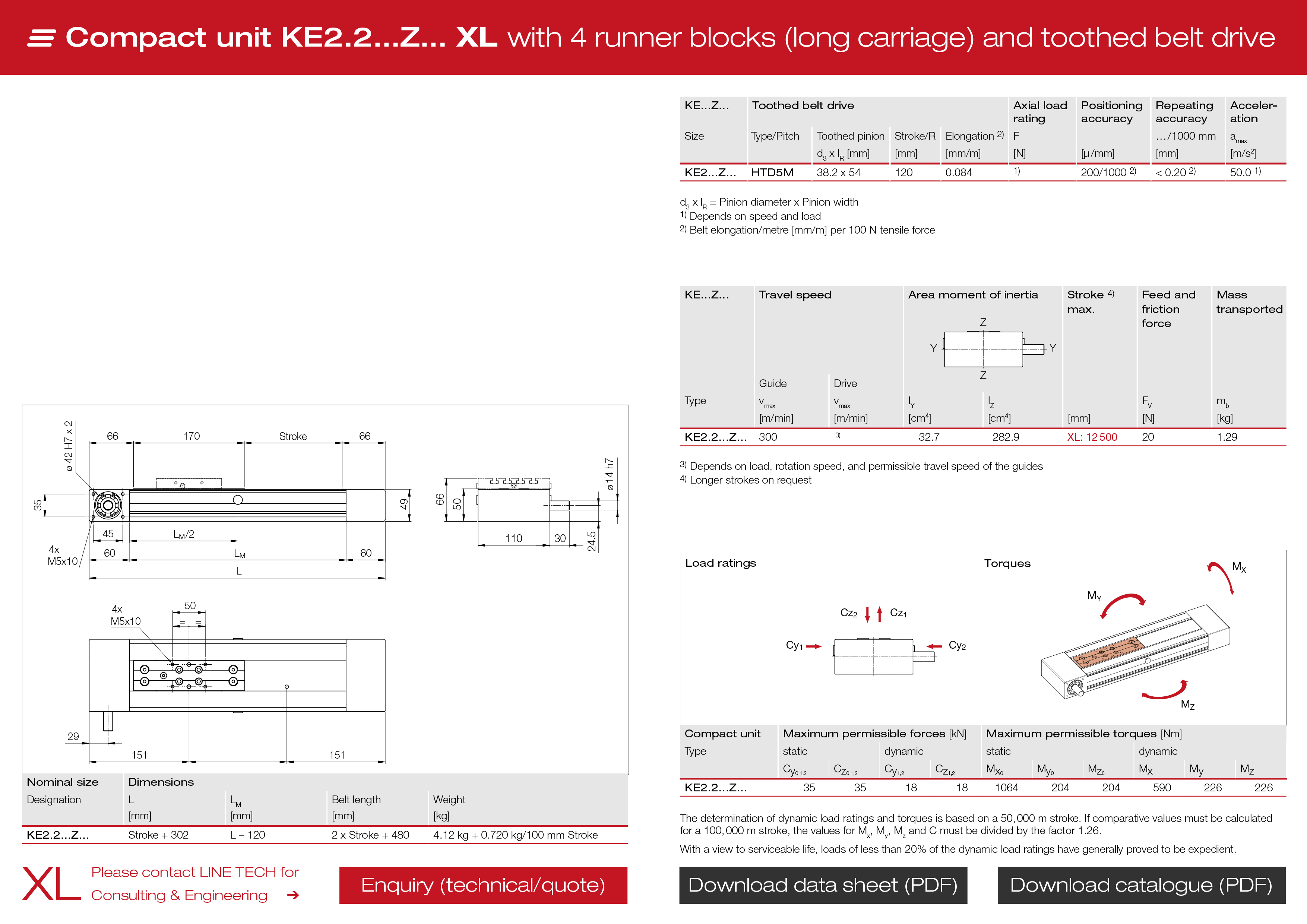

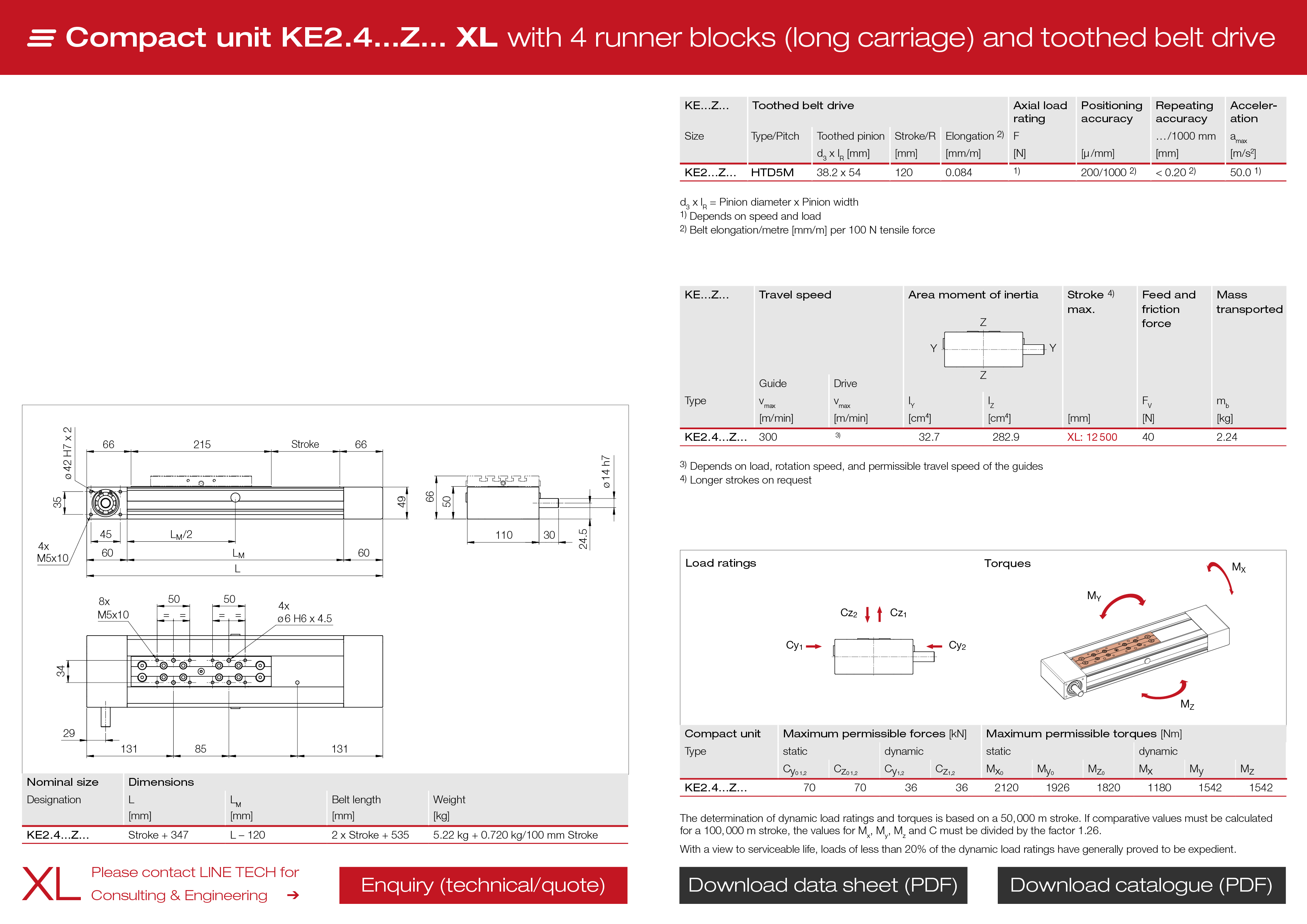

  • XL version: Stoke up to 12,500 mm
  • C0: 2100 N
  • vmax = 5 m/s | amax = 50 m/s2
  • Repeatability <0.2 mm/1000 mm
  • Positioning accuracy 200 µm/1000 mm


With ball screw drive(Type KE…R…):

  • 3 sizes
  • Stroke up to 1,850 mm
  • C0: 3333…5705 N | C: 3099…4912 N
  • vmax = 1.6 m/s | amax = 10 m/s2
  • Repeatability <0.03 mm/1000 mm
  • Positioning accuracy 52 µm/1000 mm

LINE TECH Compact units KE

are suitable for applications with medium-to-high load and precision requirements. These linear systems have a modular design and are each equipped with two linear rail guides and a total of either 2 or 4 runner blocks. High-performance toothed belts or ball screws of various types are used as drives. The version with toothed belt drive is currently available in one size (KE2...Z...), the version with ball screw in three sizes (KE1...R..., KE2...R... and KE3...R...).

Design and advantages

  • Ready-to-install compact units
  • Extremely compact design
  • Aluminium profile as base carrier
  • Aluminium carriage
  • Optimal movement characteristics combined with high load ratings and high rigidity due to either 2 (KE…2…) or 4 (KE…4…) integrated runner blocks
  • With/without connecting plate (KE…V…)
  • Drive via either
    – Toothed belt (KE…Z…)
    – Ball screw (KE…R…)
  • Simple gearbox and motor mounting
  • Suitable for cross-table mounting and multi-axis systems
  • Design can be adapted to the application*

Documents

Links



*Adaptations to meet specific customer needs can be realized flexibly and at short notice thanks to our JIT production facility – from minor additional processing to complete application-specific solutions.
Our customers always benefit from short delivery times thanks to our large warehouse with correspondingly high availability

Find the right linear unit

Series
Drive

Technical requirements

Axial force FX dyn
Depending on drive type and travel profile

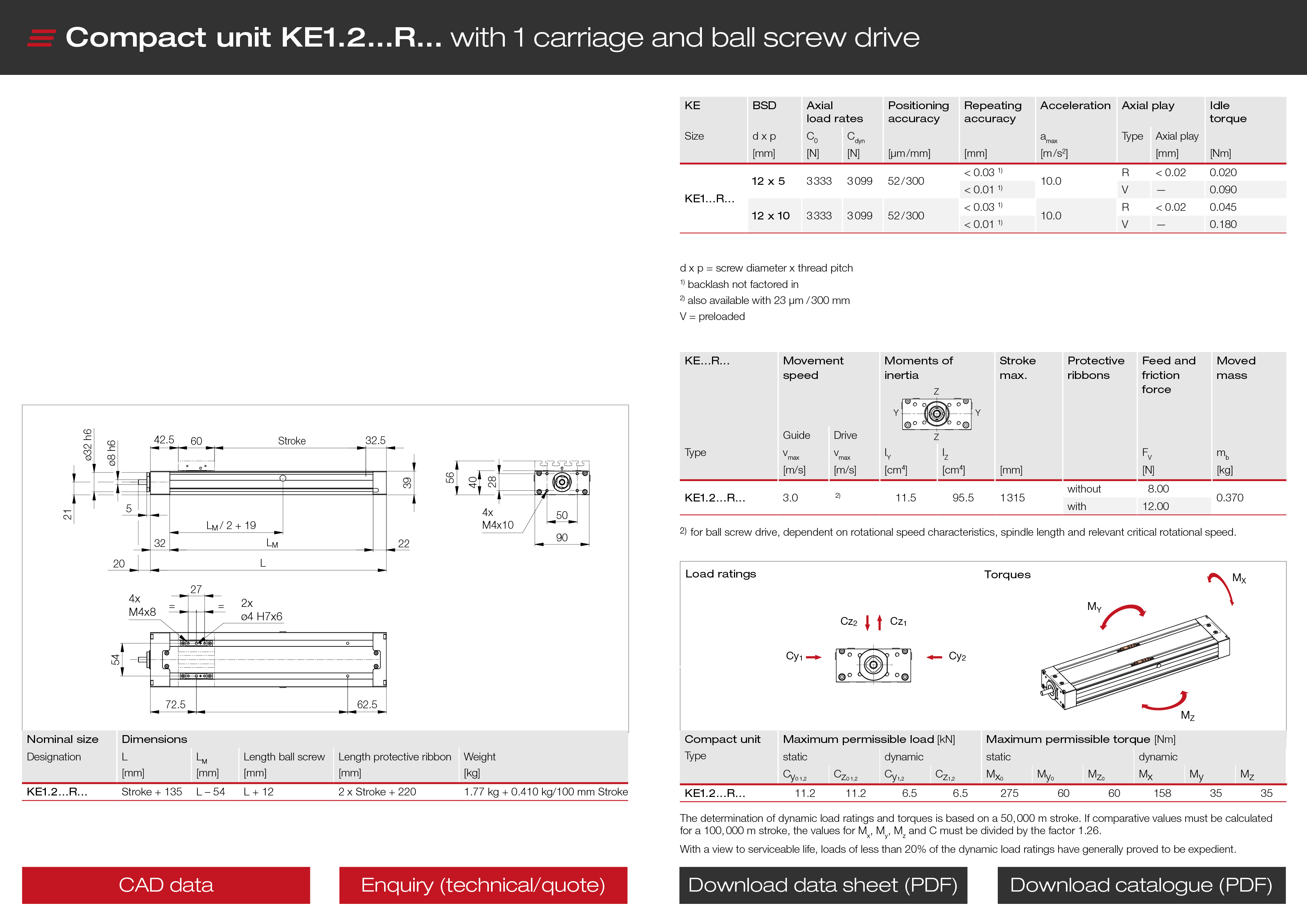

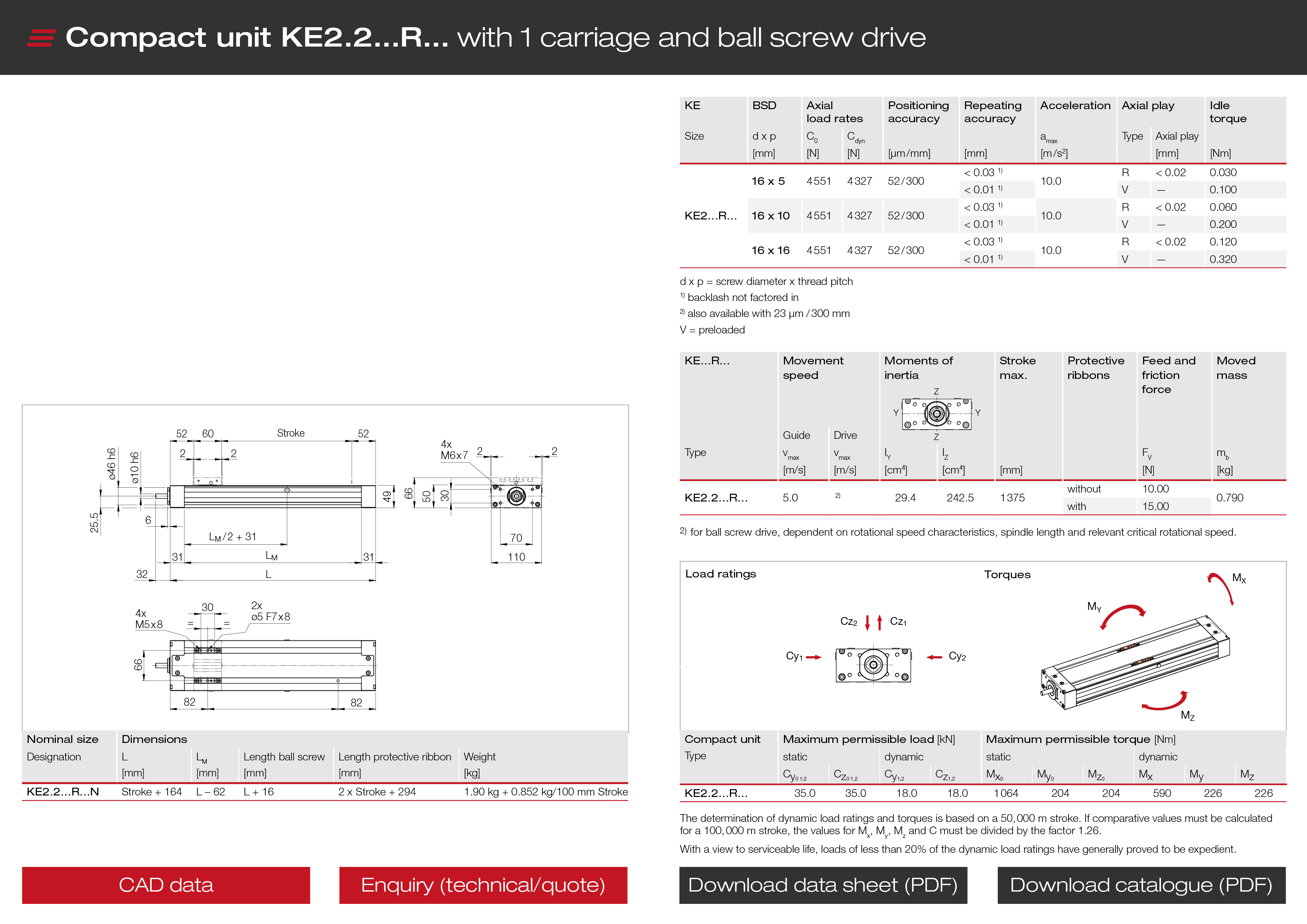

Compact units with ball screw drive

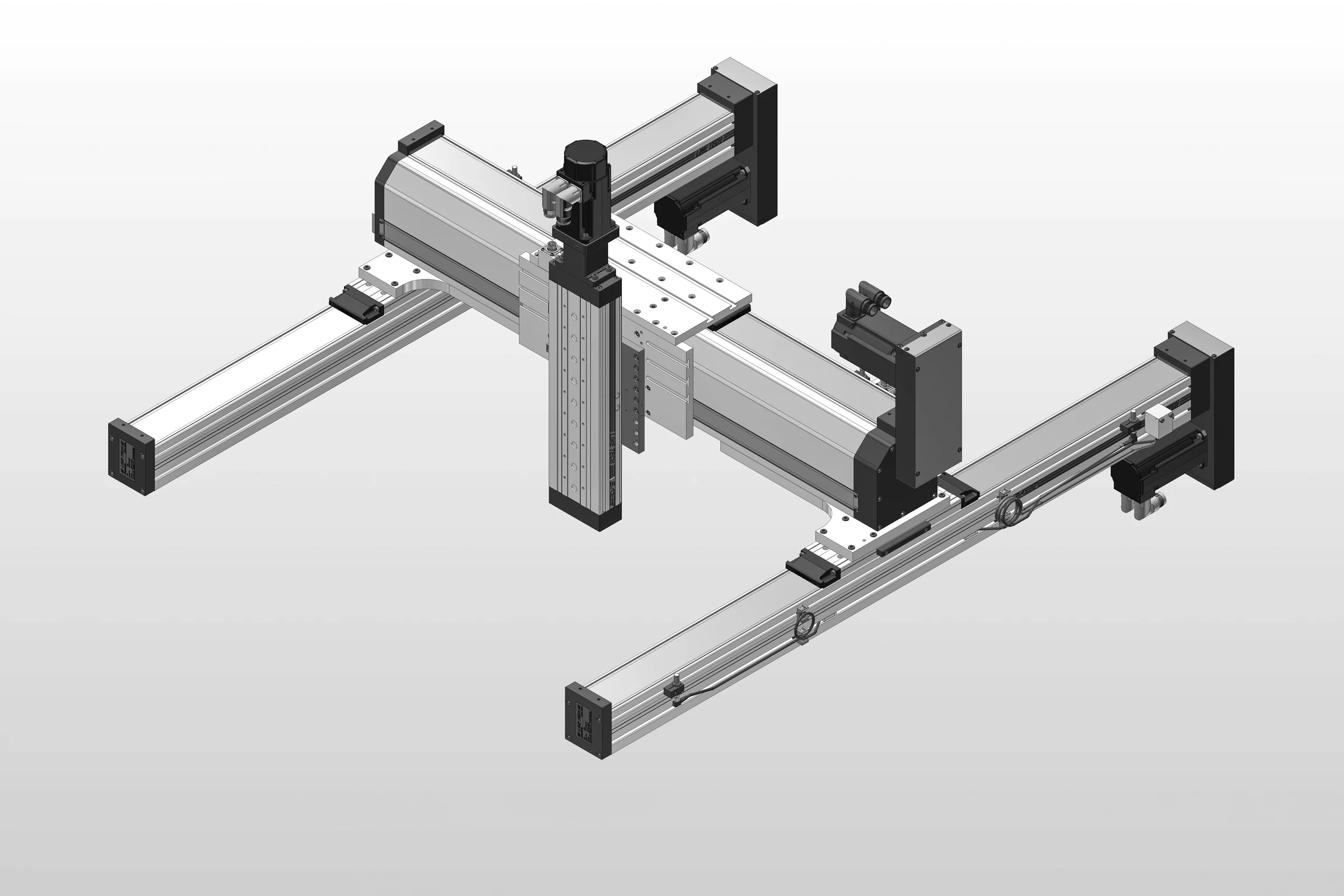

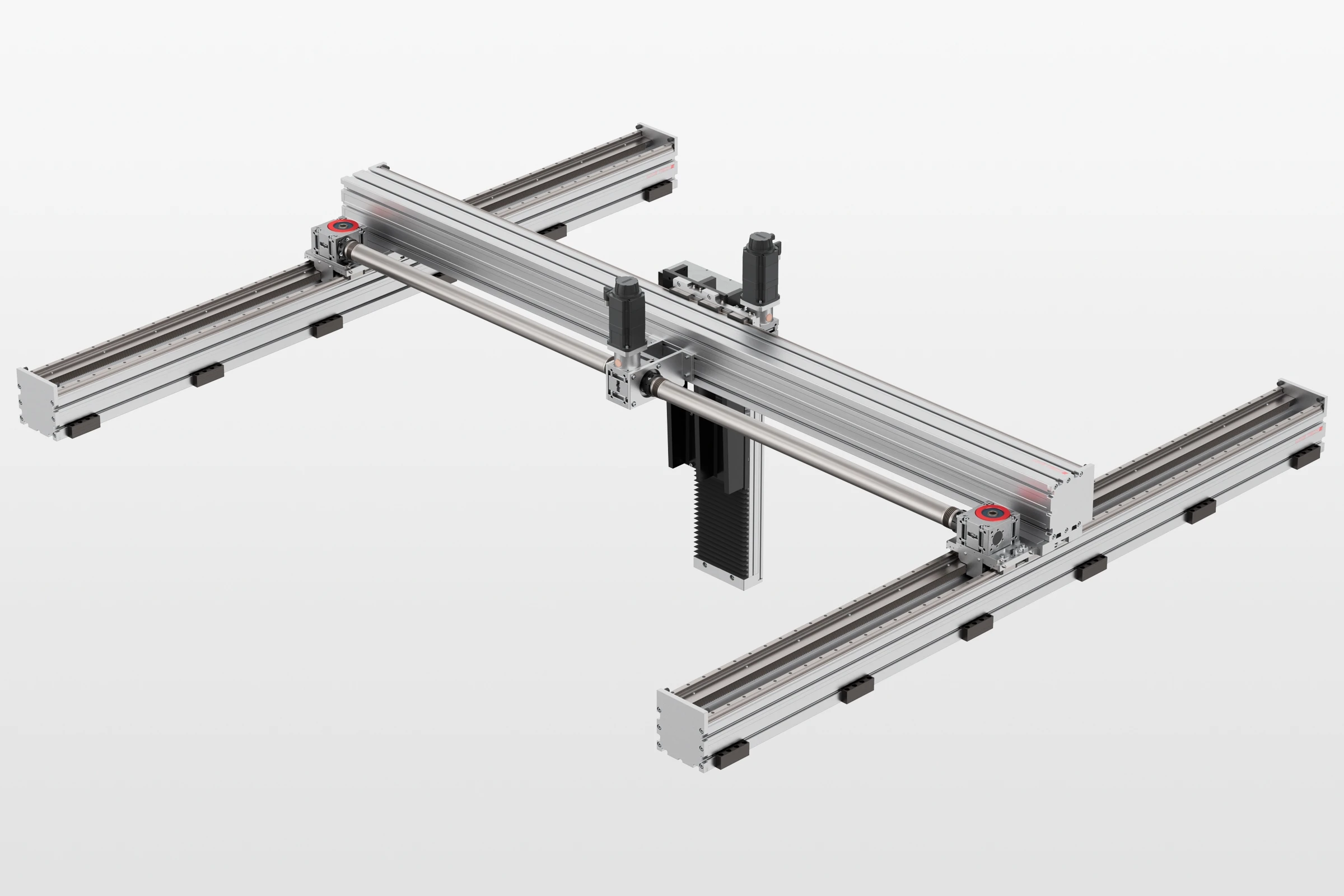

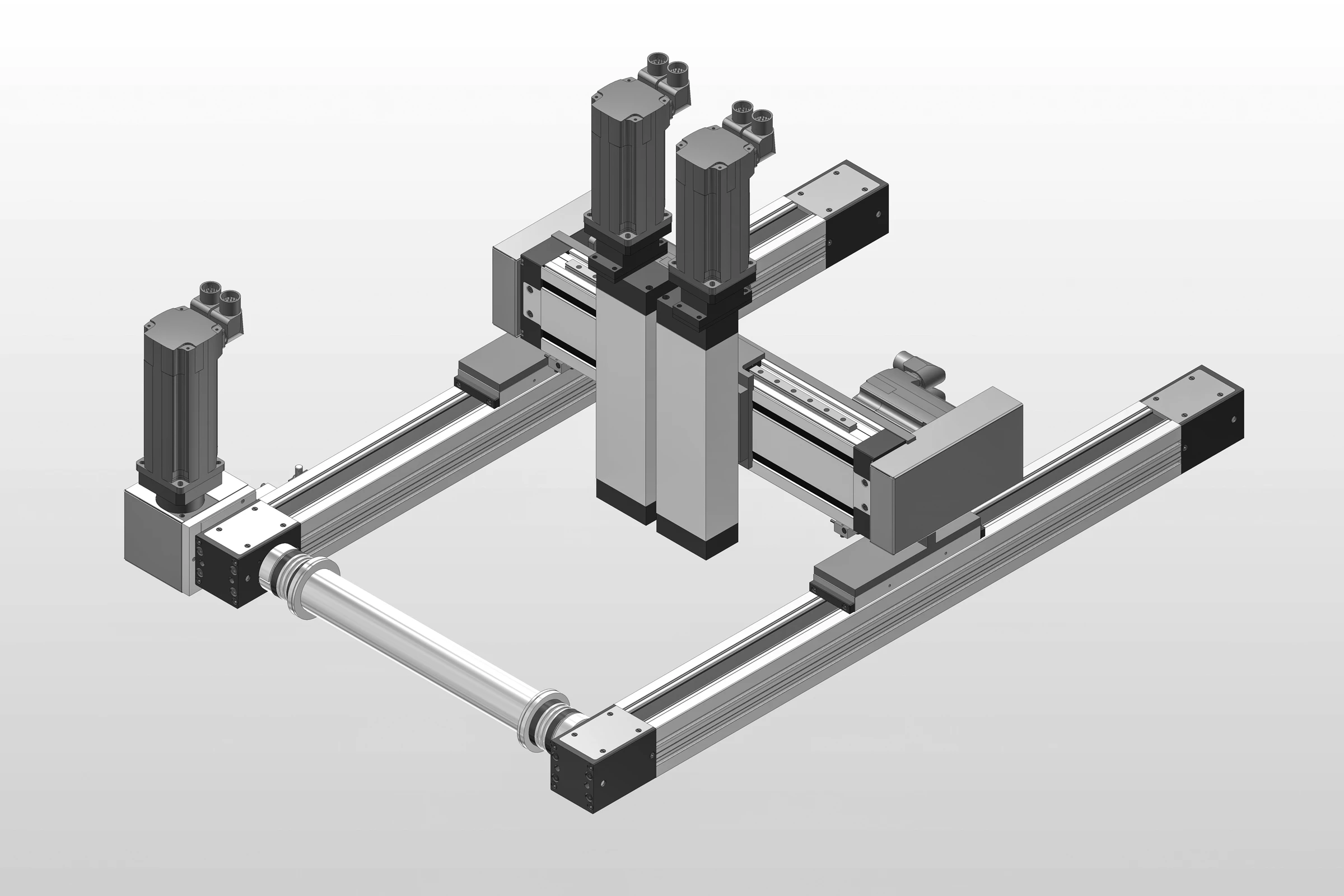

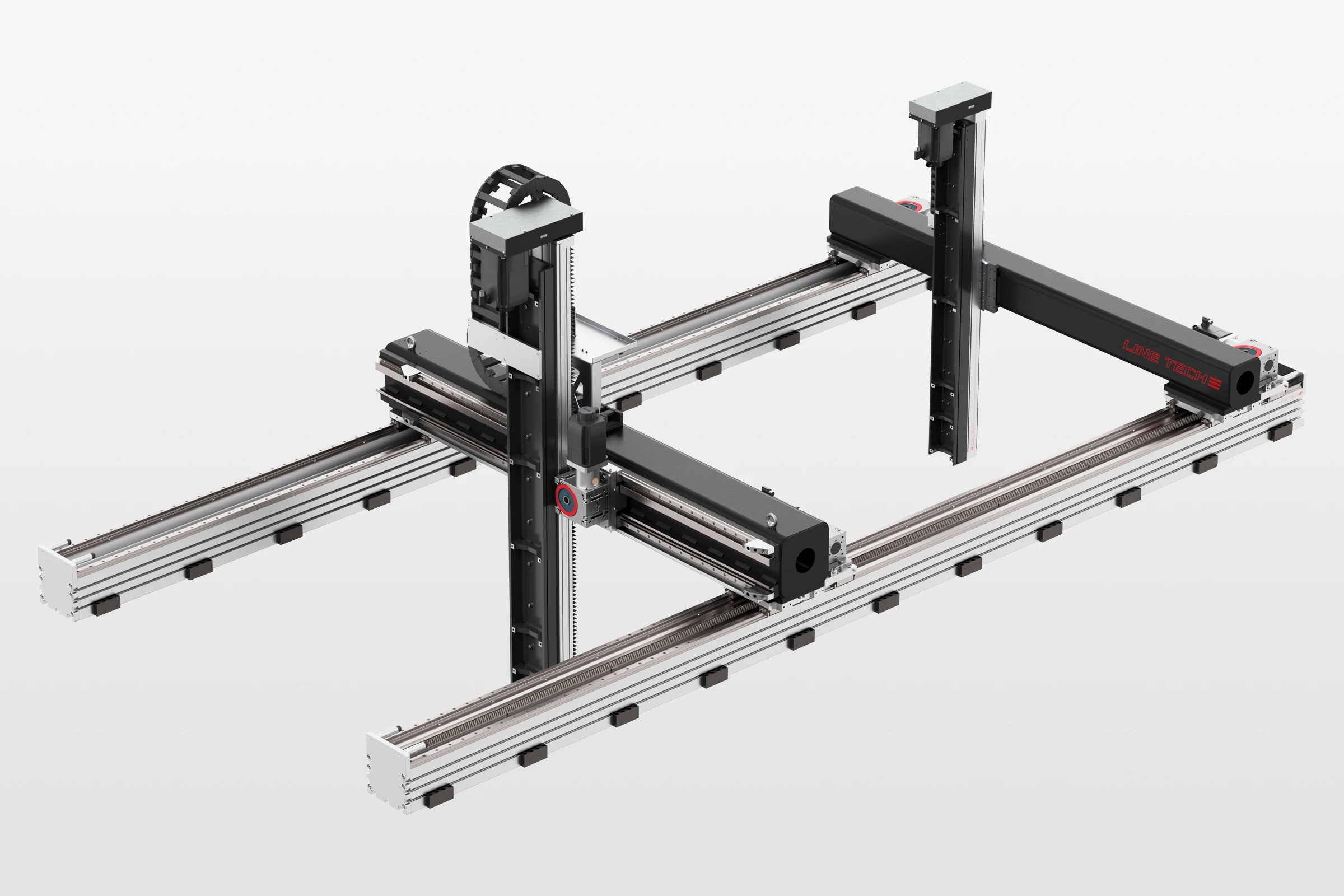

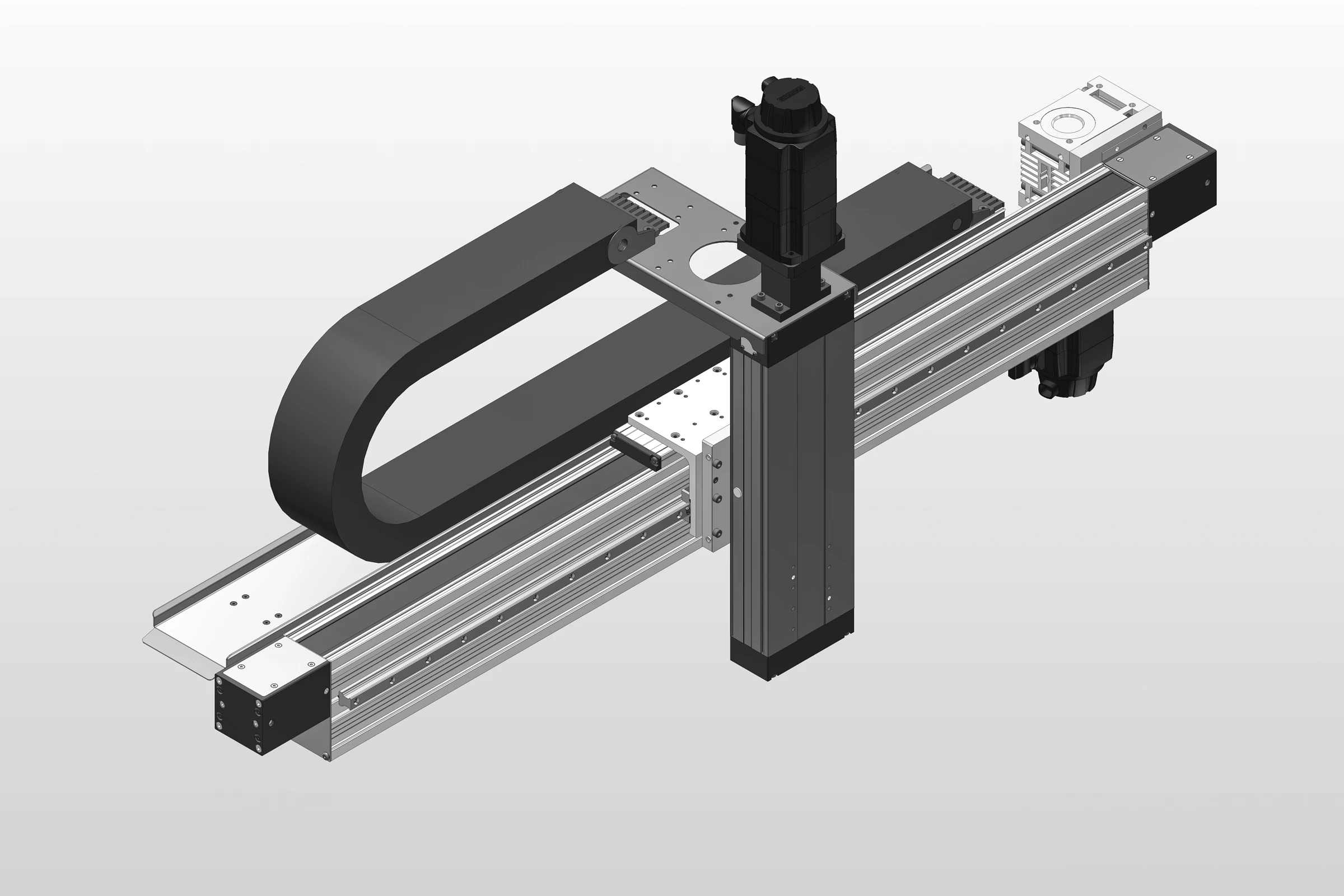

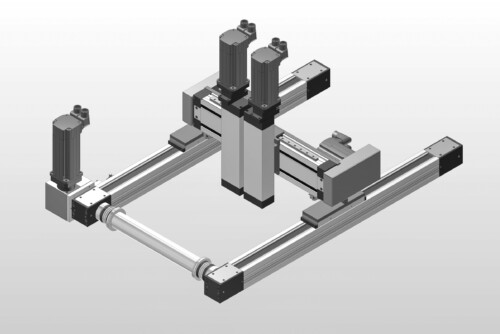

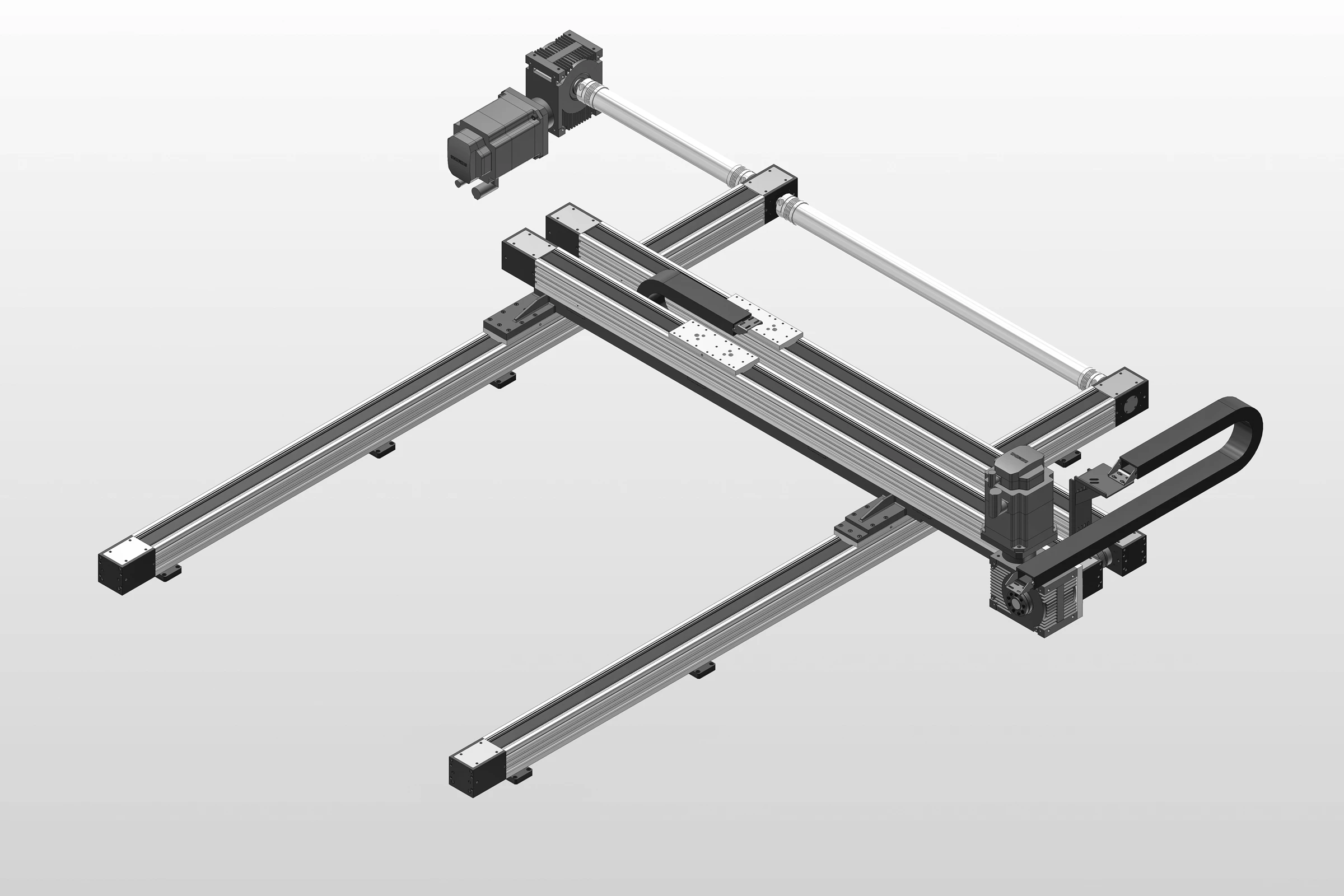

Application examples

In addition to the in-house development and production of linear axes, LINE TECH specializes in the conception, design and manufacture of multi-axis system solutions. Since 1993, we have been supporting our customers with engineering services and supplying application-specific optimized linear systems for a wide range of functions.
