for applications with longer strokes and high travel speeds under medium loads

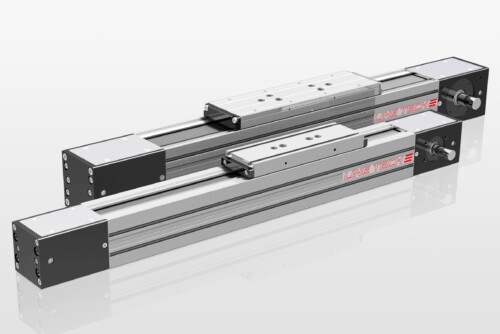

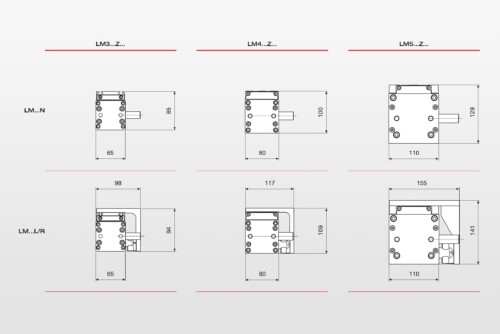

With toothed belt drive (Type LM…Z…):

• 3 sizes, each in 2 versions
• Stroke up to 7650 mm
• XL version : Stroke up to 15'350 mm
• C₀: 1560…5280 N
• v_max = 5 m/s | a_max = 50 m/s²
• Repeatability <0.2 mm/1000 mm
• Positioning accuracy 200 µm/1000 mm

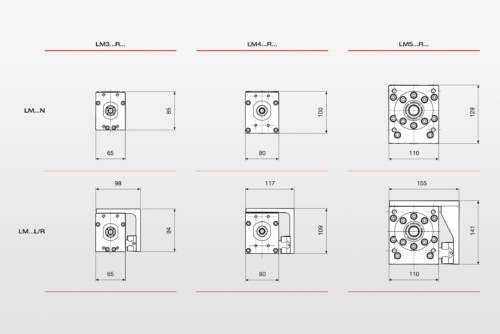

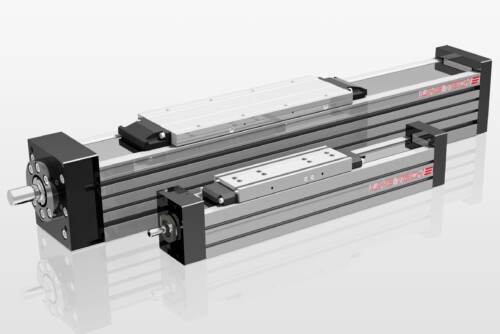

With ball screw drive (Type LM…R…):

• 3 sizes, each in 2 versions
• Stroke up to 3000 mm
• C₀: 4551…11538 N | C: 4327…8947 N
• v_max = 1.6 m/s | a_max = 10 m/s²
• Repeatability <0.03 mm/1000 mm
• Positioning accuracy 53 µm/300 mm

for highly dynamic applications with high loads and very fast cycle times


With toothed belt drive (Type DM…ZR…):

• 2 sizes
• Stroke up to 6360 mm
• XL version: Stroke up to 13'160 mm
• C₀: 4500…7200 N
• v_max = 5 m/s | a_max = 50 m/s²
• Repeatability <0.1 mm/1000 mm
• Positioning accuracy 200 µm/1000 mm


With rack and pinion drive (Type DM…ZS…):

• 2 sizes
• Stroke up to 5550 mm
• XL version: Stroke up to 19'150 mm
• v_max = 5 m/s | a_max = 50 m/s²
• Repeatability < 0.04 mm/1000 mm
• Positioning accuracy 36/37 µm/1000 mm

are especially suitable as self-supporting long-stroke portal axes or axes with higher intrinsic inertia.


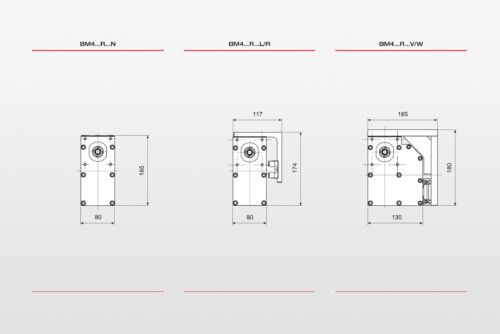

With toothed belt drive (Type BM…Z…):

• 1 size in 2 versions
• Stroke up to 6,180 mm
• XL version: Stroke up to 12,480 mm
• C₀: 2200 N
• v_max = 5 m/s | a_max = 50 m/s²
• Repeatability <0.2 mm/1000 mm
• Positioning accuracy 200 µm/1000 mm


With ball screw drive (Type BM…R…):

• 1 size in 3 versions
• Stroke up to 3,000 mm
• C₀: 5705 N | C: 4912 N
• v_max = 1.6 m/s | a_max = 10 m/s²
• Repeatability <0.03 mm/1000 mm
• Positioning accuracy 52 µm/300 mm

for the highest performance and precision requirements


With ball screw drive (Type PE…R…):

• 3 sizes
• Stroke up to 3,000 mm
• C₀: 4551…11538 N | C: 4327…8947 N
• v_max = 1.6 m/s | a_max = 10 m/s²
• Repeatability <0.01 mm/1000 mm
• Positioning accuracy 52 µm/1000 mm
